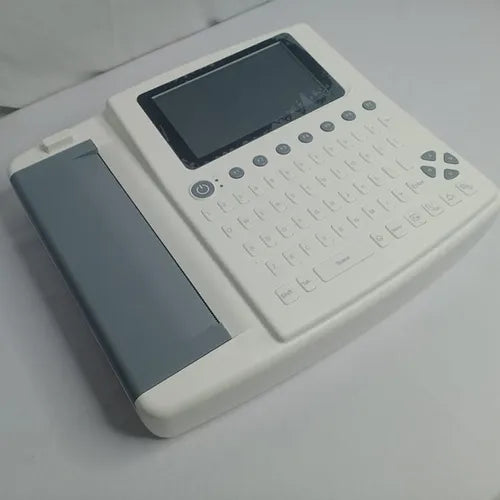

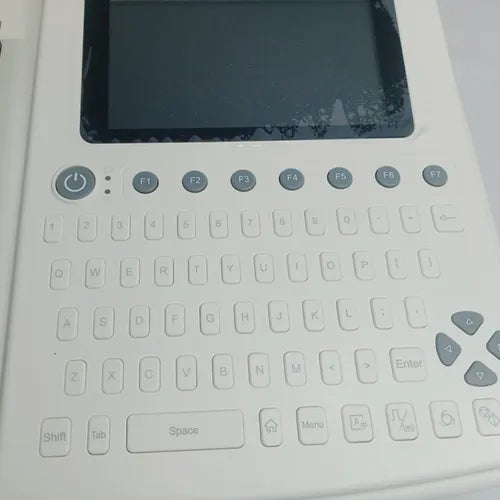

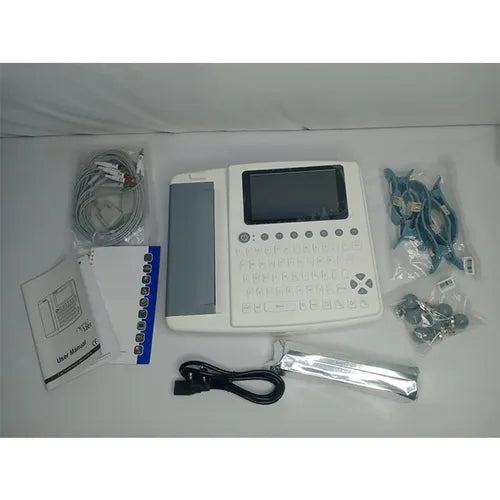

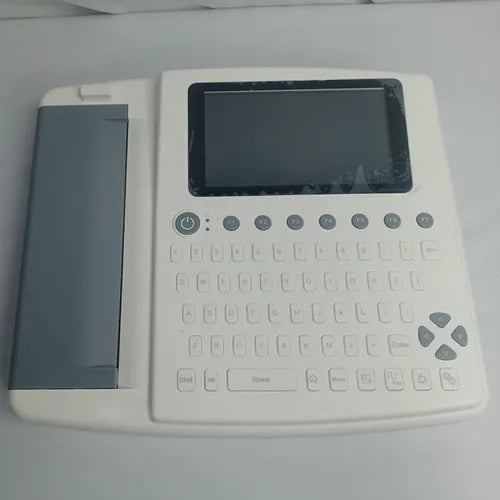

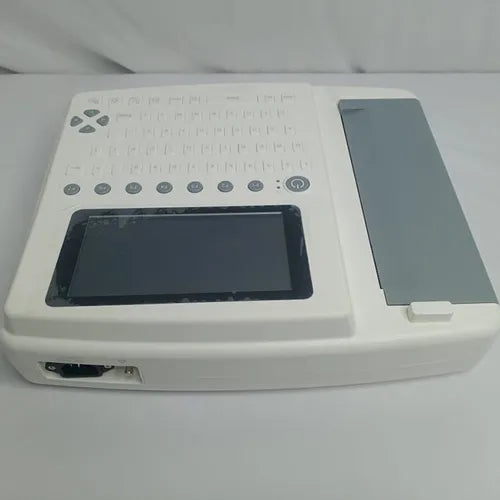

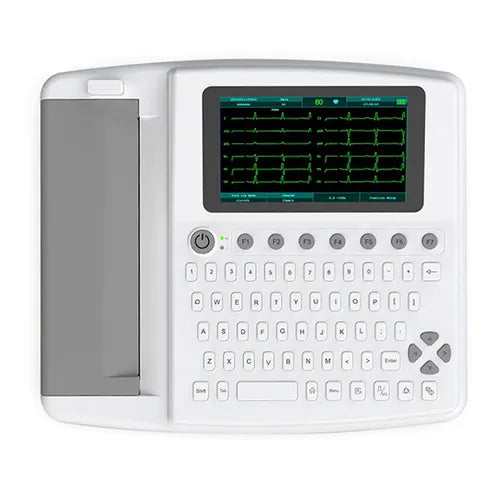

12 Channel ECG Machine with 7 inch Screen
12 Channel ECG Machine with 7 inch Screen
12 Channel ECG Machine with 7 inch Screen
12 Channel ECG Machine with 7 inch Screen
12 Channel ECG Machine with 7 inch Screen
12 Channel ECG Machine with 7 inch Screen
Save 20%

12 Channel ECG Machine with 7 inch Screen

12 Channel ECG Machine with 7 inch Screen

Rs. 44,067
Rs. 44,067 Rs. 55,200
Inclusive of all taxes .

In stock

Why Choose MeddeyGo.com ?
Happy Customers
Trusted by over 1 Lakh speciality clinics and hospitals for quality
Medical Supplies
A to Z of hospital setup — all in one place, only at MeddeyGo
Doorstep Delivery
From surgical blade to hospital bed — across 22,000+ pincodes nationwide
MedTalks
Empowering communities through expert-led awareness initiatives
  • Free shipping over ₹500
  • 7 Day Returns

Get Bulk Quote Now

The fields marked * are required.

12 Channel ECG Machine with 7 inch Screen

Key Features

  • 7-inch high-resolution color touch screen for clear and intuitive operation
  • Full alphanumeric keyboard with shortcut keys for efficient workflow
  • Simultaneous 12-lead ECG acquisition and display
  • Automatic ECG measurements and interpretation for fast diagnostics
  • Internal storage capacity of up to 1000 cases for easy review and statistics
  • Built-in high-capacity rechargeable lithium battery for long-lasting use
  • USB connectivity for data transfer to PC
  • ECG reports can be saved and reviewed on PC via ECG playback software

Technical Specifications

Technical Specifications
Input Way Floating Defibrillation Protection
Lead Standard 12 Leads
Patient Leak Current <10 µA
Input Independence ≥50 MΩ
Frequency Response 0.0 Hz ~ 150 Hz (-3dB)
Time Constant >3.2s
CMRR >60dB, >100dB (with filter)
EMG Interference Filter 35 Hz (-3dB)
Recording Method Thermal Printing System
Recording Paper 210 mm(W) × 20 m(L), high-speed thermal paper
Paper Speed Auto: 25mm/s, 50mm/s (±5%)
Rhythm: 25mm/s, 50mm/s (±5%)
Manual: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±5%)
Sensitivity Options 5, 10, 20, 40 mm/mV (±5%), standard: 10 mm/mV, 0.2 mm/mV
Recording Modes Auto: Automatic lead change, measurement & analysis
Rhythm: Automatic lead change, measurement & analysis
Manual: Manual lead selection
Measurement Parameters HR, P-R interval, P duration, QRS duration, Q interval, Q-Tc, P axis, T axis, R(V5), S(V1), R(V5)+S(V1)
Safety Classification Class 1 CF applied part with defibrillation and placement protection circuit
Enduring Polarization Voltage ±5500 mV
Noise Level <15 µV P-P
Dimensions 334 mm (L) × 320 mm (W) × 85 mm (H)
Power Supply AC: 100–240V, 50/60 Hz | DC: 14.8V, 3700 mAh lithium battery

Benefits

  • Enhances diagnostic accuracy with automatic measurement and interpretation
  • Saves time with multiple recording modes and fast thermal printing
  • Portable and battery-operated—ideal for clinics, hospitals, and mobile health camps
  • Simplifies data management through USB transfer and PC playback software
