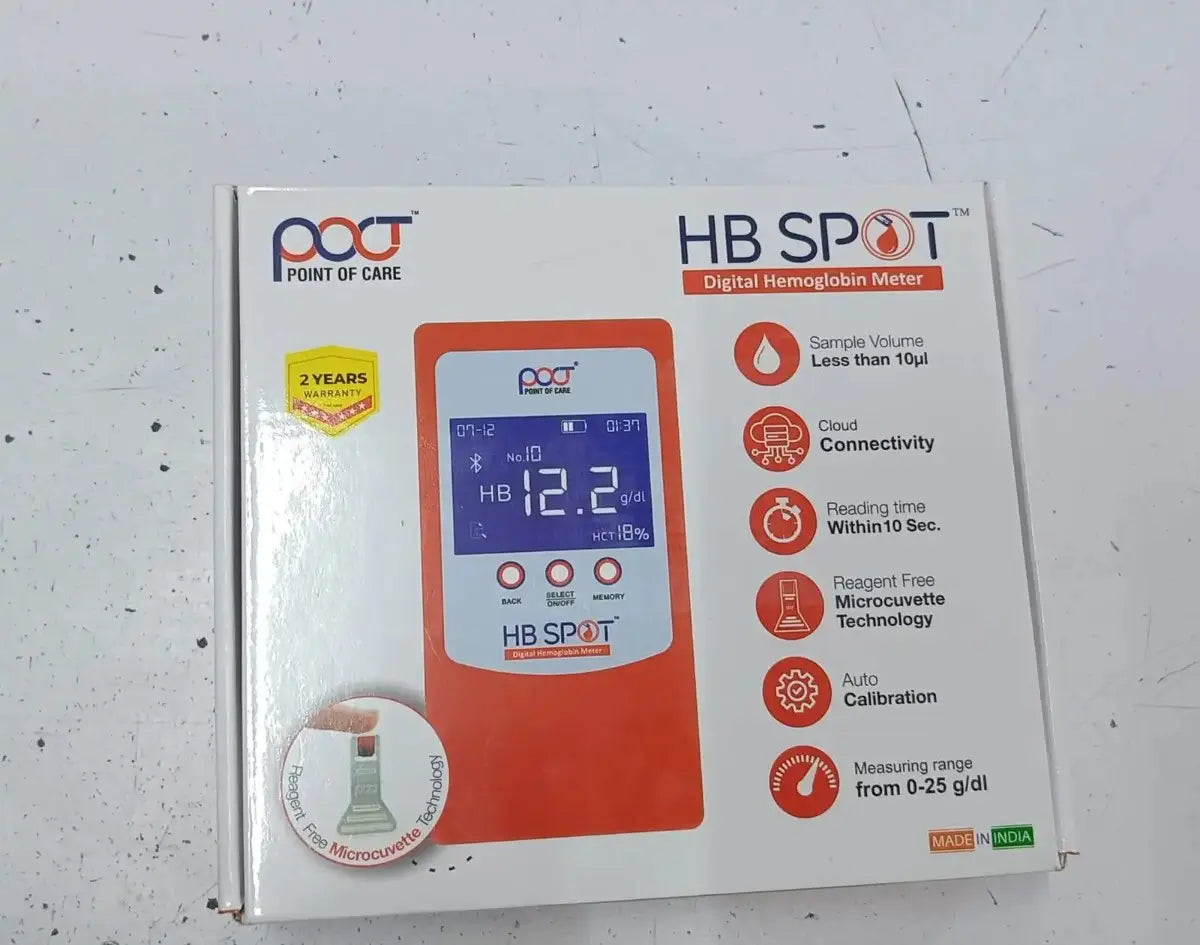

Digital Hemoglobin Meter with Reagent Free Microcuvette Techonology

Digital Hemoglobin Meter with Reagent-Free Microcuvette Technology is a compact and portable Point-of-Care Testing (POCT) device designed for rapid, accurate hemoglobin analysis. Engineered for use in clinical, diagnostic, and field settings, this in vitro diagnostic device measures total hemoglobin concentration in capillary, venous, or arterial whole blood samples in less than 10 seconds.

Utilizing dual-wavelength absorbance photometry, the device ensures high accuracy, sensitivity (>90%), and specificity (>90%) with minimal intra-sample variation. It eliminates the need for chemical reagents by using dry, reagent-free microcuvettes, making testing simpler, cleaner, and more cost-effective.

Key Features and Benefits

Reagent-Free Technology: Uses dry microcuvettes—no additional reagents required, reducing contamination risk and handling errors.

Rapid Results: Provides accurate readings in under 10 seconds.

High Accuracy: More than 90% sensitivity and specificity, with <3% intra-sample variation.

Flexible Sample Type: Compatible with capillary, venous, and arterial whole blood.

Portable Design: Lightweight and compact (375g), ideal for field and clinical use.

Advanced Connectivity: Built-in Bluetooth and USB support for PC and printer integration.

Large Data Storage: Stores up to 1,000 test results for long-term tracking.

Dual Power Options: Operates via rechargeable lithium battery or direct AC connection.

Technical Specifications

Measurement Principle: Absorbance Photometry (Dual Wavelength)

Sample Volume: Less than 10 µL

Detection Range: 0.0 – 25 g/dL

Reading Time: Up to 10 seconds

Data Storage: 1,000 test results

Calibration: Auto/Self

Connectivity: Bluetooth, USB

Power Source: 3.7V Lithium Polymer Battery & AC Adapter

Battery Life: Up to 500 tests per charge

Operating Temperature: 10°C to 50°C

Operating Humidity: 5% to 95%

Weight: 375g (with battery)

Cuvette Storage Conditions: 10°C–40°C, 5%–95% humidity, 2-year shelf life

Country of Origin : India
Manufacturer/Importer/Marketed By:  Meddey Technologies Pvt Ltd.
C-75, First Floor DDA Sheds, Industrial Area, Phase 1, Okhla, New Delhi -110020,
Phone No- +91 8586-012345
