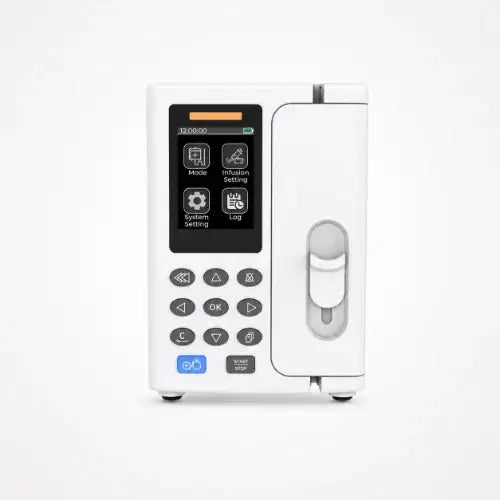

Infusion Pump IP 05 Portable Hospital IV Infusion Pump
Infusion Pump IP 05 Portable Hospital IV Infusion Pump
In stock
- Free shipping over ₹500
Couldn't load pickup availability
Share this product
The Infusion Pump Model IP-05 is a compact and lightweight medical infusion pump designed to support controlled fluid and medication delivery in professional healthcare environments. It is suitable for hospitals, ICUs, emergency departments, operation theatres, nursing units, clinics, and patient care areas where precise infusion control and monitoring support are required.
This infusion pump features a 2.8 inch TFT color screen, user-friendly interface, audible and visual alarm system, multiple infusion modes, advanced pressure detection technology, and an internal rechargeable lithium battery. Its compact size supports easy carrying, mounting, and bedside placement, making it useful for routine ward use as well as critical care workflow.
The IP-05 supports different infusion requirements through time mode, speed mode, drip mode, and weight mode. It is compatible with various brands of single-use infusion sets with 20 drops/ml specification and infusion set diameter from 3.4 mm to 4.5 mm. The device should be operated by trained healthcare professionals according to clinical protocol, prescribed infusion parameters, and user manual instructions.

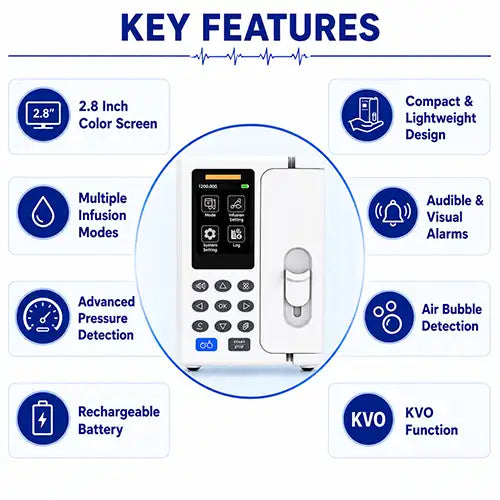

Key Features
- 2.8 Inch Color Screen: TFT display supports clear viewing of infusion settings, operating status, and alarm information.
- Compact & Lightweight Design: Easy to carry, mount, and position in patient care areas, ICUs, wards, and clinical departments.
- Multiple Infusion Modes: Supports time mode, speed mode, drip mode, and weight mode for different infusion workflow needs.
- Audible & Visual Alarms: User-friendly alarm system helps alert healthcare staff during infusion-related events.
- Advanced Pressure Detection: Supports occlusion pressure detection with selectable pressure levels from 60 kPa to 130 kPa.
- Air Bubble Detection: Detects air bubbles with selectable detection sizes including 50 µL, 100 µL, 250 µL, 500 µL, and 800 µL.
- Rechargeable Battery: Built-in 1800 mAh lithium battery supports around 5 hours working time under specified conditions.
- KVO Function: KVO rate can be set at 0.5, 1, 2, 3, 4, or 5 ml/h, or switched off as required.

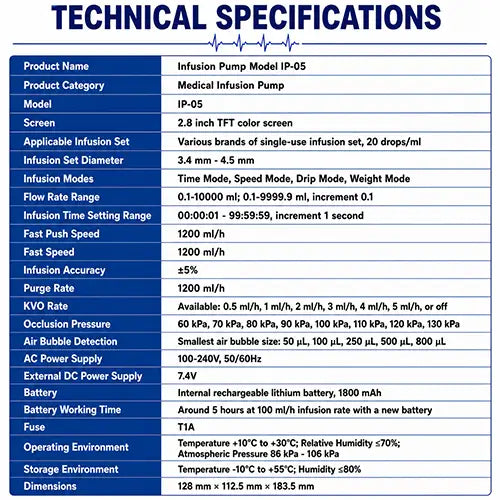

Technical Specifications
| Product Name | Infusion Pump Model IP-05 |
| Product Category | Medical Infusion Pump |
| Model | IP-05 |
| Screen | 2.8 inch TFT color screen |
| Applicable Infusion Set | Various brands of single-use infusion set, 20 drops/ml |
| Infusion Set Diameter | 3.4 mm - 4.5 mm |
| Infusion Modes | Time Mode, Speed Mode, Drip Mode, Weight Mode |
| Flow Rate Range | 0.1-10000 ml; 0.1-9999.9 ml, increment 0.1 |
| Infusion Time Setting Range | 00:00:01 - 99:59:59, increment 1 second |
| Fast Push Speed | 1200 ml/h |
| Fast Speed | 1200 ml/h |
| Infusion Accuracy | ±5% |
| Purge Rate | 1200 ml/h |
| KVO Rate | Available: 0.5 ml/h, 1 ml/h, 2 ml/h, 3 ml/h, 4 ml/h, 5 ml/h, or off |
| Occlusion Pressure | 60 kPa, 70 kPa, 80 kPa, 90 kPa, 100 kPa, 110 kPa, 120 kPa, 130 kPa |
| Air Bubble Detection | Smallest air bubble size: 50 µL, 100 µL, 250 µL, 500 µL, 800 µL |
| AC Power Supply | 100-240V, 50/60Hz |
| External DC Power Supply | 7.4V |
| Battery | Internal rechargeable lithium battery, 1800 mAh |
| Battery Working Time | Around 5 hours at 100 ml/h infusion rate with a new battery |
| Fuse | T1A |
| Operating Environment | Temperature +10°C to +30°C; Relative Humidity ≤70%; Atmospheric Pressure 86 kPa - 106 kPa |
| Storage Environment | Temperature -10°C to +55°C; Humidity ≤80% |
| Dimensions | 128 mm × 112.5 mm × 183.5 mm |
Product Benefits
- Supports controlled infusion delivery for clinical, ICU, emergency, and ward-based patient care workflows.
- Multiple infusion modes help healthcare staff manage different therapy requirements with suitable settings.
- Compact body supports easy mounting and movement between patient care areas.
- Audible and visual alarms support user awareness during infusion events and operating changes.
- Advanced pressure detection helps identify occlusion-related conditions during infusion monitoring.
- Air bubble detection supports safer infusion workflow when operated according to clinical protocol.
- Rechargeable battery supports continued use during movement or short power transition periods.
- KVO rate options support keep-vein-open workflow when clinically appropriate.
Applications
The Infusion Pump Model IP-05 is suitable for hospitals, ICUs, emergency departments, operation theatres, recovery rooms, nursing wards, clinics, infusion rooms, and patient monitoring areas. It can be used for controlled infusion delivery where prescribed flow rate, infusion time, drip setting, or weight-based infusion mode is required.
The infusion pump should be used only with compatible infusion sets and according to medical prescription, drug protocol, and patient monitoring requirements. It is intended for professional healthcare use and should not replace clinical judgement or direct patient assessment.
How to Use
- Place or mount the infusion pump securely near the patient according to ward or ICU setup requirements.
- Connect the pump to AC power or confirm that the internal rechargeable battery has sufficient charge.
- Use a compatible single-use infusion set and install it correctly according to the user manual.
- Select the required infusion mode such as time mode, speed mode, drip mode, or weight mode.
- Set the prescribed infusion parameters including flow rate, infusion time, dose-related values, or drip settings as applicable.
- Prime the infusion line and check for air bubbles before starting the infusion.
- Start infusion and monitor the screen, alarms, pressure status, battery level, and patient condition during operation.
- After completion, stop the pump, remove the infusion set according to clinical protocol, and clean the device surface as per user manual guidance.
Why Choose This Infusion Pump?
The IP-05 infusion pump is suitable for healthcare facilities that require a compact, multi-mode infusion device with color display, alarm system, pressure detection, air bubble detection, KVO options, and rechargeable battery support. Its broad flow range and multiple operating modes make it practical for routine and critical care infusion workflows.
For hospitals, clinics, and patient care departments, this pump supports infusion accuracy, clinical workflow flexibility, and ease of operation by trained users. Buyers should confirm infusion set compatibility, power requirements, battery condition, alarm settings, calibration needs, and user training requirements before use.
FAQs
1. What is the IP-05 infusion pump used for?
The IP-05 infusion pump is used to support controlled delivery of fluids or medications through compatible infusion sets. It is suitable for hospitals, ICUs, emergency departments, wards, and clinical infusion areas where trained staff manage prescribed infusion parameters.
2. Which infusion modes are available?
This infusion pump supports time mode, speed mode, drip mode, and weight mode. These modes help healthcare professionals select infusion settings according to treatment requirement, patient condition, prescription, and facility protocol.
3. What is the infusion accuracy of this pump?
The provided infusion accuracy is ±5%. Correct installation of compatible infusion set, proper priming, calibration, pump setup, and monitoring are important for maintaining safe and reliable infusion workflow.
4. How long does the battery work?
The internal rechargeable lithium battery provides around 5 hours working time when used at an infusion rate of 100 ml/h with a new battery. Actual battery performance may vary depending on usage condition and battery health.
5. Who should operate this infusion pump?
This infusion pump should be operated by trained healthcare professionals, nurses, clinicians, or authorized medical staff. Users should follow the prescription, infusion protocol, pump manual, alarm instructions, and patient monitoring requirements.
