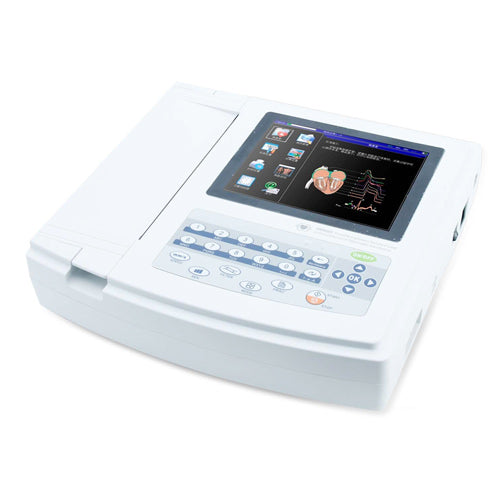

๐ฉบ 12-Lead ECG Machine โ Advanced Digital ECG System
This high-performance 12-lead ECG machine is designed for accurate cardiac monitoring with automatic analysis and interpretation. Featuring a 7-inch high-resolution touchscreen and a full alphanumeric keyboard, it ensures efficient operation for healthcare professionals.
๐น Key Features
โ
๐บ 7-Inch High-Resolution Touchscreen โ Clear display for real-time ECG readings
โ
โจ๏ธ Full Alphanumeric Keyboard โ Quick access to functions with shortcut keys
โ
๐ Simultaneous 12-Lead ECG Acquisition & Display โ Ensures accurate heart monitoring
โ
๐ Automatic ECG Measurements & Interpretation โ Reduces workload for doctors
โ
๐พ Internal Storage โ Stores up to 1000 cases for convenient case review
โ
๐ Built-in Rechargeable Lithium Battery โ High capacity for continuous operation
โ
๐ USB Connectivity โ Transfers ECG data to a PC for review & analysis
โ
๐จ๏ธ Multiple Printing Modes โ Auto and manual modes with adjustable paper speed
๐ Technical Specifications
๐น Input Way: Floating Defibrillation Protection
๐น Leads: Standard 12 Leads
๐น Patient Leak Current: <10 ยตA
๐น Input Impedance: โฅ50 Mฮฉ
๐น Frequency Response: 0.0 Hz~150 Hz (-3dB)
๐น CMRR: >60dB, >100dB (with filter)
๐น EMG Interference Filter: 35 Hz (-3dB)
๐น Recording System: High-Speed Thermal Printing
๐น Recording Paper Size: 210 mm(W) x 20 mm(L)
๐น Paper Speed:
- Auto Record: 25mm/s, 50mm/s (ยฑ5%)
- Rhythm Record: 25mm/s, 50mm/s (ยฑ5%)
-
Manual Record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (ยฑ5%)
๐น Sensitivity Selection: 5, 10, 20, 40 mm/mV (ยฑ5%) โ Standard: 10 mm/mV
๐น Measurement Parameters: HR, P-R interval, QRS duration, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), etc.
๐น Product Safety Type: Class 1 CF applied part with defibrillation & protection circuit
๐น Enduring Polarization Voltage: ยฑ5500mV
๐น Noise Level: <15 ยตVp-p
๐น Size: 334 mm (L) ร 320 mm (W) ร 85 mm (H)
๐น Power Supply: - AC: 100-240V, 50/60 Hz
- DC: 14.8V, 3700mAh Rechargeable Lithium Battery
๐ Printing & Display Features
๐จ๏ธ Display of 3/6/12-Lead ECG โ Shows print mode, sensitivity, paper speed, and filter state on one screen for better comparison
๐จ๏ธ Multiple Printing Modes: Auto, Rhythm, and Manual with options like 12x1, 6x2+1, 3x4+1, rhythm 12, rhythm 10, rhythm 8, rhythm 6, etc.
๐จ๏ธ Adjustable Waveform Print Length & Time Print Function โ Meets different diagnostic needs
๐ก Frequently Asked Questions (FAQs)
How long does the battery last?
๐ฌ In optimal DC state, the ECG machine can provide 10-hour standby time and continuous printing for over 3 hours.
Can the ECG data be transferred to a computer?
๐ฌ Yes! The device supports USB connectivity for data transfer & analysis on PC using ECG playback software.
What printing options are available?
๐ฌ The ECG machine offers multiple printing formats & speeds, including auto, rhythm, and manual modes.
Is the machine suitable for home visits?
๐ฌ Yes! It is portable and battery-operated, making it ideal for home healthcare and mobile diagnostics.
๐ญ Manufacturer Details
๐ Country of Origin: ๐ฎ๐ณ India
๐ข Manufacturer/Importer/Marketed By:
Meddey Technologies Pvt. Ltd.
๐ Address: C-75, First Floor, DDA Sheds, Industrial Area, Phase 1, Okhla, New Delhi - 110020
๐ Phone: +91 8586-012345
๐ Ensure Precise ECG Readings & Advanced Diagnosis! Get the 12-Lead ECG Machine today for accurate, reliable, and efficient cardiac monitoring! ๐
