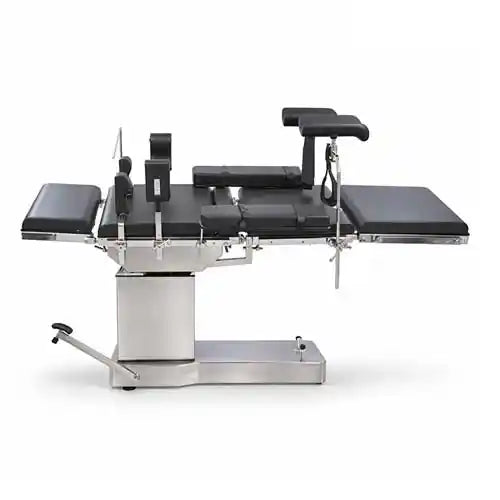

C-Arm OT Table Hydraulic with Radiolucent Top & 200 kg Capacity

Multi-Purpose C-Arm OT Table with Hydraulic Height Adjustment

The Multi-Purpose C-Arm OT Table with Hydraulic System is designed for hospitals, surgical centres and operation theatres that need flexible patient positioning with imaging access. This C Arm OT table combines hydraulic height adjustment, a radiolucent tabletop and manual positioning controls. Therefore, surgical teams can prepare the patient for different procedures while maintaining a stable working platform.

The table height adjusts from approximately 750 mm to 1000 mm through a foot-operated hydraulic system. In addition, other movements use mechanical controls. As a result, staff can adjust Trendelenburg, backrest and leg positions without depending on electric motors.

Moreover, the radiolucent tabletop supports compatible C-Arm imaging during suitable procedures. The table is available with SS 202 or SS 304 construction depending on the selected configuration. Therefore, buyers can choose the material option that matches their OT requirement.

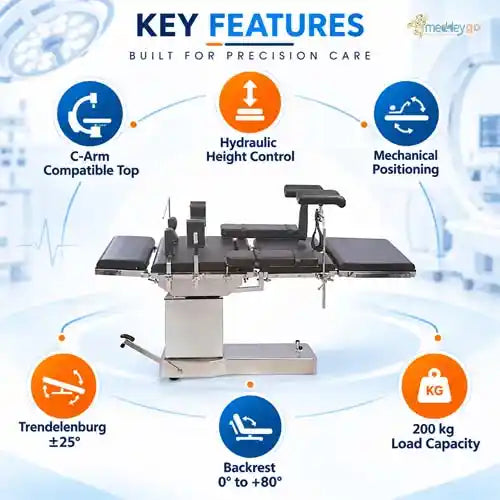

Key Features

• C-Arm Compatible Top: Radiolucent surface supports suitable imaging-guided procedures.
• Hydraulic Height Control: Foot-operated system provides smooth height adjustment.
• Mechanical Positioning: Allows controlled adjustment of major table sections.
• Trendelenburg Adjustment: Supports positioning up to ±25°.
• Adjustable Backrest: Back section adjusts from 0° to +80°.
• Leg Section Adjustment: Leg section moves downward up to 90°.
• PU Foam Mattress: Supplied anti-bacterial mattress provides padded patient support.
• 200 kg Load Capacity: Supports patients within the stated maximum load.
• OT Accessories: Arm boards, leg holders, side rails and anesthesia screen are included as supplied.

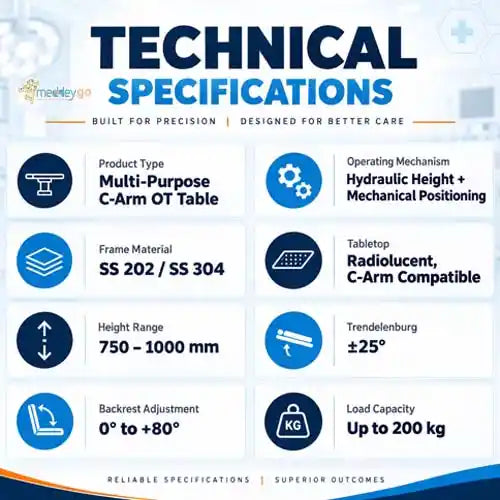

Technical Specifications

Benefits

First, hydraulic height adjustment helps surgeons select a suitable working level. Next, mechanical positioning provides simple control over different table sections. Also, the radiolucent top supports compatible C-Arm imaging without unnecessary patient movement. Therefore, the table can support both positioning and imaging needs within one OT setup.

In addition, the supplied mattress provides cushioned support during procedures. The stainless steel construction also supports routine cleaning and regular clinical use. As a result, this table is practical for busy surgical environments.

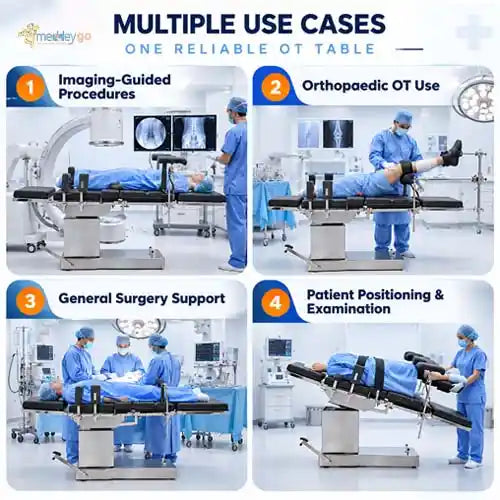

Applications

• General surgery
• Orthopaedic procedures
• Gynecology procedures
• Urology procedures
• C-Arm guided interventions
• Multi-specialty operation theatres

How to Use

First, place and secure the table in the required OT position. Next, transfer the patient according to approved procedure. Use the hydraulic foot control to adjust table height. Then, set the backrest, leg section or Trendelenburg position as required. Also, fit the necessary accessories before beginning surgery. Finally, confirm all locks and supports before the procedure starts.

Why Choose This C-Arm OT Table?

This C Arm OT table combines hydraulic height movement, mechanical adjustment and a radiolucent top in one multi-purpose system. Therefore, it is suitable for facilities that need a practical table for different surgical specialties. Moreover, the included accessories help prepare the table for routine OT requirements.

Buying Guidance

Before ordering, confirm whether SS 202 or SS 304 construction is required. Also, verify C-Arm compatibility with your specific imaging system, required accessories and OT room space. Therefore, the final configuration can better match the intended surgical workflow.

Professional Use Note: Only trained OT staff should operate this table. Always inspect the hydraulic system, mechanical locks, accessories and patient supports before use. Do not exceed the stated 200 kg load capacity.

Frequently Asked Questions

Is this C-Arm OT table radiolucent?
Yes. The supplied tabletop is radiolucent for compatible C-Arm imaging.

How is the height adjusted?
Height is adjusted through a foot-operated hydraulic system.

What is the height range?
The supplied height adjustment range is 750–1000 mm.

What is the maximum load capacity?
The table supports up to 200 kg.

Which stainless steel options are available?
SS 202 and SS 304 configurations are listed.

Is a mattress included?
Yes. A PU foam anti-bacterial mattress is included as supplied.

Which accessories are included?
The supplied accessories include arm boards, leg holders, side rails and an anesthesia screen.
