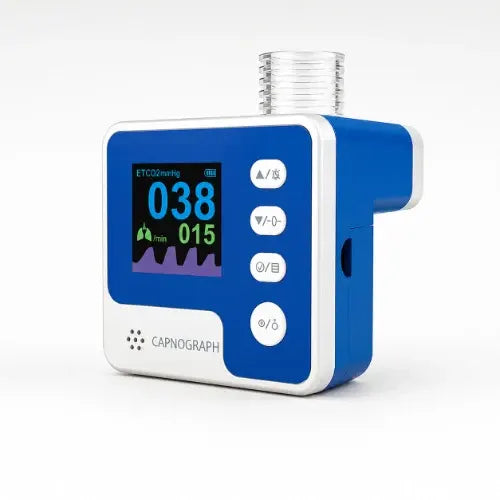

CAPNOGRAPH (Main stream Etco2)

The Capnograph Mainstream EtCO₂ Monitor is a compact respiratory monitoring device designed to measure end-tidal carbon dioxide and airway respiration rate using the mainstream measurement method. It is suitable for professional monitoring support in emergency departments, intensive care units, operating rooms, respiratory departments, and clinical environments where ventilation monitoring is required for adult, child, and infant patients.

This mainstream EtCO₂ capnograph connects with the patient’s respiratory tract through an airway adapter and breathing tube when used with a ventilator or anesthetic machine. The device is designed to support real-time monitoring of EtCO₂ and AwR during ventilation-related care workflows. Its portable structure, digital display, alarm functions, and battery-powered operation make it practical for clinical teams that need focused capnography monitoring in critical care and procedure-based environments.

The device includes end-tidal CO₂ measurement, respiration rate measurement, optional unit selection, audible and visual alarm support, alarm silencing, over-limit alarm function, low battery alarm, “Adapter off” prompt, zero calibration support, and atmospheric pressure and temperature compensation. It should be used by trained healthcare professionals only, and all readings should be interpreted according to patient condition, clinical protocol, and the user manual.

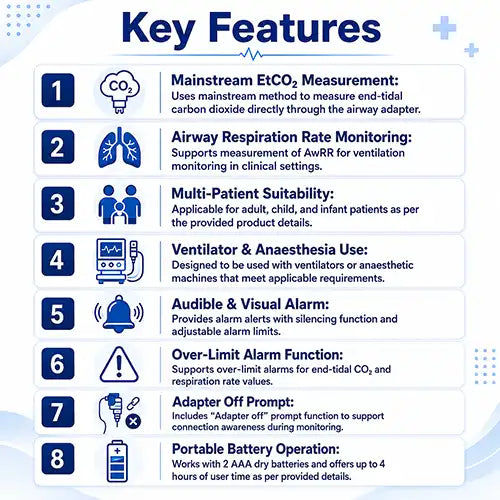

Key Features

• Mainstream EtCO₂ Measurement: Uses mainstream method to measure end-tidal carbon dioxide directly through the airway adapter.
• Airway Respiration Rate Monitoring: Supports measurement of AwRR for ventilation monitoring in clinical settings.
• Multi-Patient Suitability: Applicable for adult, child, and infant patients as per the provided product details.
• Ventilator & Anaesthesia Use: Designed to be used with ventilators or anaesthetic machines that meet applicable requirements.
• Audible & Visual Alarm: Provides alarm alerts with silencing function and adjustable alarm limits.
• Over-Limit Alarm Function: Supports over-limit alarms for end-tidal CO₂ and respiration rate values.
• Adapter Off Prompt: Includes “Adapter off” prompt function to support connection awareness during monitoring.
• Portable Battery Operation: Works with 2 AAA dry batteries and offers up to 4 hours of user time as per provided details.

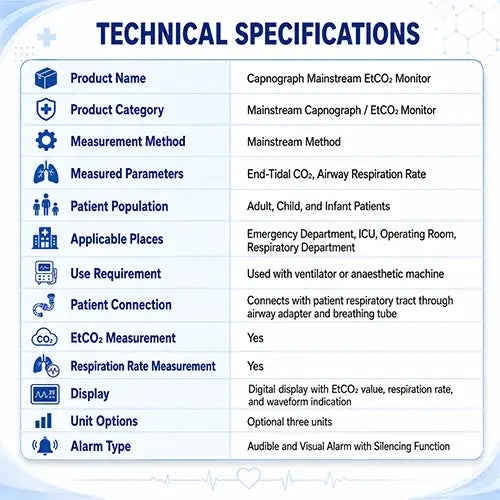

Technical Specifications

Product Benefits

• Supports continuous EtCO₂ and airway respiration rate observation during ventilation-based monitoring.
• Mainstream measurement method helps provide direct measurement through the airway adapter setup.
• Useful across emergency, ICU, operating room, and respiratory care workflows.
• Applicable for adult, child, and infant patients as per provided product details.
• Audible and visual alarms help alert clinical staff when values cross selected alarm limits.
• “Adapter off” prompt supports user awareness if the adapter connection requires attention.
• Atmospheric pressure and temperature compensation support stable monitoring functionality.
• Battery-powered design with up to 4 hours of user time supports portable clinical use.

Applications

This mainstream capnograph EtCO₂ monitor is suitable for emergency departments, ICU areas, operation theatres, respiratory departments, recovery areas, and ventilation-related monitoring setups. It is designed for use with ventilators or anaesthetic machines, where monitoring of end-tidal CO₂ and airway respiration rate is required as part of professional patient care workflow.

The device is intended for adult, child, and infant patient monitoring when used with the appropriate airway adapter and compatible ventilation or anaesthesia setup. The breathing tube, except for the airway adapter, is not part of the device as per provided information.

How to Use

1. Insert 2 AAA dry batteries and check device readiness before connecting to the patient circuit.
2. Use the device with a compatible ventilator or anesthetic machine as per clinical requirements.
3. Connect the device to the patient’s respiratory tract using the airway adapter and breathing tube setup.
4. Switch on the capnograph and allow it to initialize according to the user manual.
5. Check EtCO₂ value, airway respiration rate, waveform display, and selected unit setting during monitoring.
6. Set alarm limits for end-tidal CO₂ and respiration rate according to clinical protocol.
7. Respond appropriately to audible, visual, low battery, over-limit, or “Adapter off” alerts.
8. After use, disconnect safely, clean the device exterior as recommended, and store it properly.

Why Choose This Mainstream Capnograph?

This mainstream capnograph is designed for clinical teams that need focused EtCO₂ and airway respiration rate monitoring support during ventilator or anaesthesia-based care. Its compact build, digital display, alarm functions, adapter prompt, and compensation features make it suitable for emergency, ICU, OT, and respiratory care use.

It is a practical option for healthcare facilities looking for a portable capnography device that can support monitoring across different patient populations. Before purchase, buyers should confirm airway adapter compatibility, ventilator or anaesthetic machine compatibility, accessories, battery requirements, service support, and warranty terms.

FAQs

1. What does this mainstream capnograph measure?

This device measures end-tidal carbon dioxide and airway respiration rate using the mainstream method. It connects through an airway adapter in the breathing circuit and supports ventilation monitoring in clinical settings such as ICU, emergency, operating room, and respiratory departments.

2. Which patient groups can this device be used for?

As per the provided details, this capnograph is applicable for adult, child, and infant patients. The correct airway adapter, breathing circuit arrangement, and clinical settings should be selected by trained professionals according to patient size and monitoring requirement.

3. Does this capnograph need a ventilator or anaesthetic machine?

Yes, this device needs to be used with a ventilator or anaesthetic machine. It connects with the patient’s respiratory tract through the airway adapter and breathing tube. The ventilator or anaesthetic machine should meet applicable requirements as stated in the product details.

4. What alarm functions are available?

The device includes audible and visual alarm support, silencing function, low battery alarm, and over-limit alarm for end-tidal CO₂ and respiration rate. Alarm limits can be set according to monitoring needs and clinical protocol by trained healthcare users.

5. What is the battery backup of this device?

This capnograph works with 2 AAA dry batteries and provides up to 4 hours of user time as per the provided details. Actual battery time may vary depending on battery quality, alarm usage, display activity, and operating conditions.
