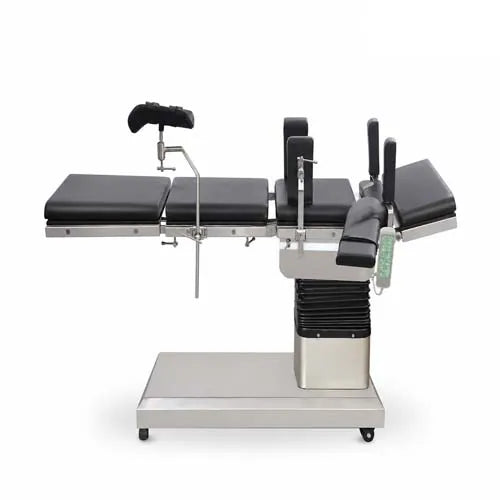

Dual Mode 4-Function Electric Operating Table with Radiolucent Top

Dual Mode 4-Function Electric Operating Table with Radiolucent Top

The Dual Mode 4-Function Electric Operating Table is designed for hospitals, surgical centres and operation theatres that need smooth patient positioning with imaging support. This electric operating table provides powered control for height, backrest, head-down tilt and head-up tilt. Therefore, OT staff can make routine position changes with less manual effort.

The table also includes a manual override system. As a result, selected positioning functions can still be managed if electric operation is unavailable. In addition, the radiolucent tabletop supports compatible C-Arm and X-ray imaging during suitable procedures. Therefore, imaging can be performed without unnecessary patient repositioning.

Moreover, the table is available in SS 202 or SS 304 construction, depending on the selected configuration. A waterproof PU foam mattress, side rails, arm boards and leg holders are included as supplied. Thus, the table offers a practical setup for multi-specialty OT use.

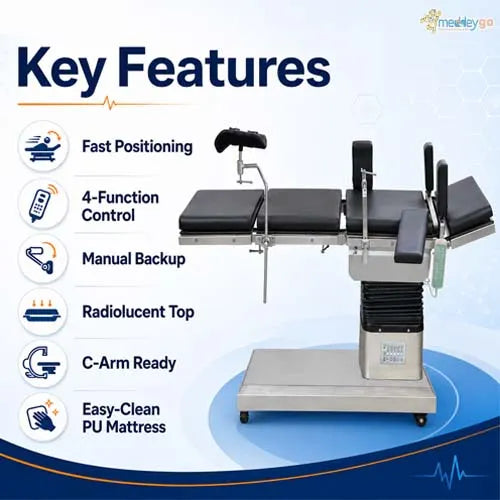

Key Features

• 4 Powered Functions: Electric adjustment for height, backrest, head-down tilt and head-up tilt.
• Dual Mode Operation: Electric control with manual override backup.
• Radiolucent Tabletop: Supports compatible C-Arm and X-ray imaging.
• 700–1000 mm Height Range: Allows staff to select a suitable working height.
• ±25° Tilt: Supports head-down and head-up positioning.
• Electric Backrest: Adjustable from 0° to approximately +80°.
• PU Foam Mattress: Waterproof and anti-bacterial surface as supplied.
• SS Construction Options: Available in SS 202 or SS 304 configuration.
• High Load Support: Rated up to approximately 180–200 kg, depending on model.

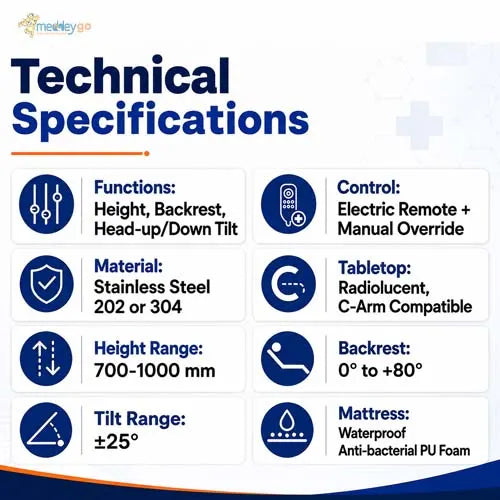

Technical Specifications

Benefits

First, electric controls help reduce effort during common position changes. Next, the manual override provides an alternative control option when needed. Also, the radiolucent top supports compatible imaging during surgery. Therefore, the table can support both positioning and imaging requirements in one setup.

In addition, the adjustable height helps staff select a comfortable working level. The waterproof mattress also supports easier routine cleaning. As a result, the table is suitable for regular OT use across different specialties.

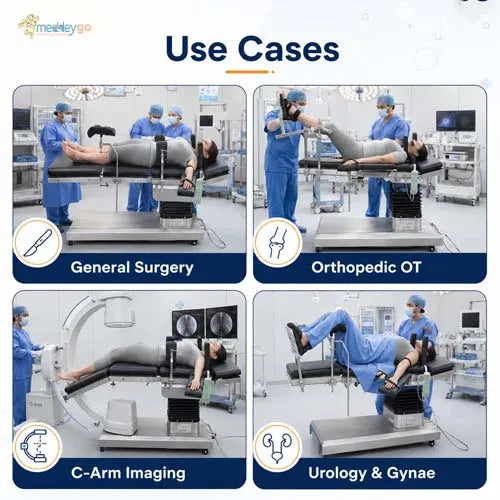

Applications

• General surgery
• Gynecology and urology
• Orthopaedic procedures
• ENT and minor surgical procedures
• C-Arm and X-ray guided procedures
• Multi-specialty operation theatres

How to Use

First, place and secure the table in the required OT position. Next, transfer the patient using the approved hospital procedure. Use the remote control to adjust height, backrest or tilt as required. Also, fit the necessary arm boards, leg holders or rails. Finally, confirm all positions and supports before the procedure begins.

Why Choose This Electric Operating Table?

This electric operating table combines four powered movements, manual backup and C-Arm compatibility in one system. Therefore, it is useful for hospitals that need flexible positioning across different surgical procedures. Moreover, SS 202 and SS 304 options allow buyers to choose a configuration according to their facility requirements.

Buying Guidance

Before ordering, confirm the required stainless steel grade, load capacity and C-Arm compatibility with your imaging system. Also, verify the final accessories and exact model specifications because the stated 180–200 kg load range may vary by configuration.

Professional Use Note: Only trained OT personnel should operate the table. Check the electrical controls, manual override, mattress, accessories and locking system before every procedure.

Frequently Asked Questions

What does dual mode mean?
It refers to electric operation with a manual override backup.

What four functions are powered?
Height, backrest, head-down tilt and head-up tilt are electrically controlled.

Is this table C-Arm compatible?
Yes. The supplied tabletop is radiolucent for compatible C-Arm imaging.

What is the height range?
The supplied height range is approximately 700 to 1000 mm.

What is the load capacity?
It is approximately 180–200 kg, depending on the selected model.

Which material options are available?
The table is available in SS 202 or SS 304 configurations.

Is a mattress included?
Yes. A waterproof PU foam mattress is included as supplied.
