Professional ECG Testing Support for Clinics & Hospitals

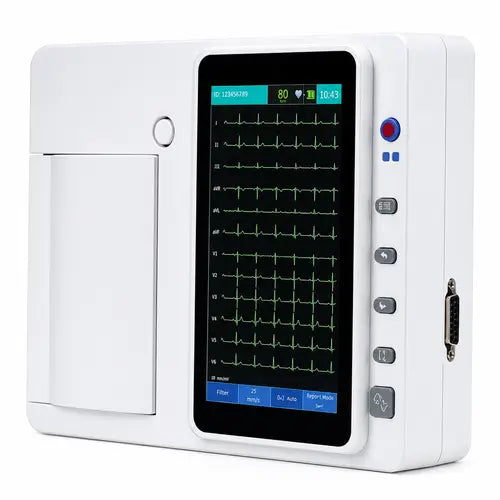

3 Channel ECG Machine 7 Inch Touch 12 Lead Support

This electrocardiogram machine is designed for hospitals, clinics, diagnostic centres and emergency care areas that need reliable ECG testing support. It supports standard 12 lead ECG acquisition, helping clinicians record cardiac electrical activity with better clarity during routine screening and patient evaluation.

Because it supports simultaneous 12 lead acquisition, multiple recording modes, thermal printing and battery operation, this ECG machine is useful for OPD testing, bedside ECG, health checkups and cardiac monitoring workflows. Also, clear ECG leads and placement support helps healthcare professionals perform structured ECG recording with confidence.

Key Features

Standard 12 Lead ECG

Supports standard 12 lead ECG recording for complete cardiac signal assessment.

Simultaneous Acquisition

Captures 12 lead data together, helping improve ECG workflow speed and consistency.

Thermal Printing System

Prints ECG reports on 80 mm roll paper for quick clinical documentation.

Multiple Paper Speeds

Supports 12.5 mm/s, 25 mm/s and 50 mm/s paper speed for flexible ECG reporting.

Built-in Battery Support

Rechargeable lithium battery support helps maintain operation during movement or power changes.

Clinical Safety Support

Protection against defibrillator effect and low patient leak current support safer clinical use.

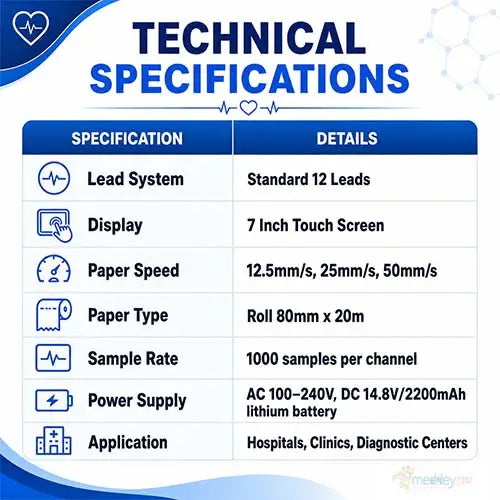

Technical Specifications

Specification	Details
Lead	Standard 12 Leads
Acquisition Mode	Simultaneous 12 Leads Acquisition
Measurement Range	±5mVpp
Input Circuit	Floating; protection circuit against defibrillator effect
Input Impedance	≥50MΩ
Input Circuit Current	<0.05μA
CMRR	>100dB
Patient Leak Current	<10μA at 220V–240V
Frequency Response	0.05Hz–150Hz (-3dB)
Sensitivity	2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV; error ±5%
Anti-Baseline Drift	Automatic
Time Constant	≥3.2s
Noise Level	<15μV p-p
Paper Speed	12.5mm/s, 25mm/s, 50mm/s
Recording Mode	Thermal Printing System
Paper Specification	Roll 80mm x 20m
Record Mode	Automatic: 3CHx4+1R, 3CHx4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHx2
Manual Mode	3CH, 2CH, 3CH+1R, 2CH+1R
Rhythm	Any lead selectable
Filter	EMG: 25Hz / 30Hz / 40Hz / 75Hz / 100Hz / 150Hz; DFT: 0.05Hz / 0.15Hz; AC: 50Hz / 60Hz
Safety Standard	IEC I / CF
Sample Rate	Normal: 1000sps/channel
Power Supply	AC: 100–240V, 50/60Hz, 30VA–100VA; DC: 14.8V/2200mAh built-in lithium battery
Single Gross Weight	2.8 kg

Product Benefits

Supports accurate ECG recording for routine cardiac assessment.
Also, 12 lead ECG acquisition helps provide a complete cardiac view.
Thermal printing supports quick report generation for clinical records.
Because it has battery support, it can be used during movement or power changes.
Multiple paper speeds and sensitivity settings support flexible ECG testing.
As a result, it is useful for hospitals, clinics, diagnostic centres and emergency units.

Common Uses

Hospital ECG Testing Useful for cardiac assessment in wards, OPDs and emergency care areas.	Clinic Screening Suitable for routine heart rhythm screening in clinics and consultation rooms.
Diagnostic Centres Supports ECG report printing and structured patient testing workflows.	ECG Leads and Placement Helps trained staff perform standard 12 lead ECG recording with proper lead placement.

Who Should Buy This Product?

Hospitals and emergency departments
Clinics and OPD consultation rooms
Diagnostic centres and cardiac screening setups
Doctors, cardiology units and healthcare professionals
Medical buyers looking for a 12 lead ECG machine
Healthcare facilities needing a reliable electrocardiogram machine

Why Choose This Electrocardiogram Machine from MeddeyGo?

This electrocardiogram machine is a good choice for healthcare spaces that need standard 12 lead ECG acquisition, report printing and flexible recording settings. It supports clinical ECG workflows while keeping operation practical for trained users.

Also, MeddeyGo supports hospitals, clinics and diagnostic buyers with medical equipment, product guidance and online purchase support across India. Because ECG equipment is used for critical cardiac assessment, choosing a reliable supplier helps improve buying confidence.

Quick Tips for Use

Place ECG electrodes correctly as per standard ECG leads and placement protocol.
Keep the patient relaxed and still during recording for cleaner waveforms.
Select paper speed and sensitivity as per clinical reporting need.
Use filters carefully to reduce interference without affecting interpretation.
Ensure paper roll, battery charge and lead cables are checked before testing.
ECG interpretation should always be done by qualified healthcare professionals.

Buying Guidance

Choose this ECG machine if you need a clinical electrocardiogram machine with standard 12 lead ECG support, thermal printing, selectable rhythm lead, multiple paper speeds and battery backup. It is especially useful for clinics, hospitals and diagnostic centres that perform regular ECG testing.

However, this product should be used by trained healthcare staff. ECG results should not be self-interpreted, and abnormal findings should be reviewed by a qualified doctor or cardiology professional.

Buy Electrocardiogram Machine Online

Upgrade your diagnostic setup with an electrocardiogram machine designed for 12 lead ECG testing, report printing and professional clinical use. Order online for hospitals, clinics and diagnostic centres in India.

Buy from MeddeyGo

Frequently Asked Questions

What is an electrocardiogram machine used for?

An electrocardiogram machine is used to record the electrical activity of the heart for clinical assessment.

Does this ECG machine support 12 lead ECG?

Yes, it supports standard 12 lead ECG acquisition for a complete cardiac signal view.

What is the use of ECG leads and placement?

Proper ECG leads and placement help capture accurate heart signals from different body positions.

Can this ECG machine print reports?

Yes, it supports thermal printing with 80mm x 20m roll paper.

Is this machine suitable for clinics?

Yes, it is suitable for clinics, hospitals, diagnostic centres, OPDs and emergency units.

Does it have battery backup?

Yes, it supports DC 14.8V/2200mAh built-in lithium battery operation.

Who should operate this ECG machine?

This ECG machine should be operated by trained healthcare staff, technicians or qualified medical professionals.
