EMS Muscle Stimulator Machine 4 in 1 Therapy
The EMS Muscle Stimulator Machine 4 in 1 Therapy is a compact electrotherapy device designed for pain relief support, muscle stimulation, recovery therapy and home physiotherapy routines. It combines TENS, EMS, IF and RUSS therapy modes in one portable unit for different therapy needs under proper guidance.
This 4 in 1 therapy machine comes with dual channel output, adjustable intensity, timer control and reusable electrode pads. It is suitable for users who need a portable therapy support device for muscle relaxation, stimulation, pain management and guided physiotherapy care.

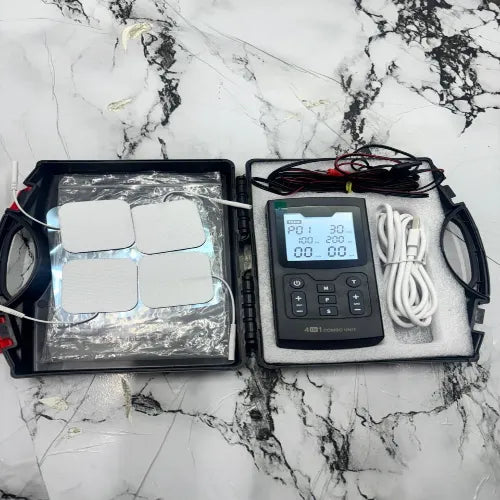

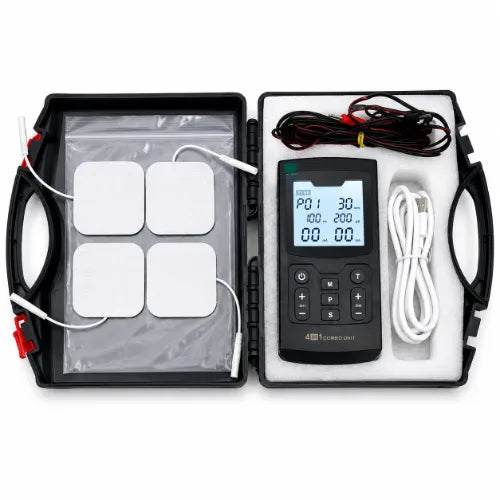

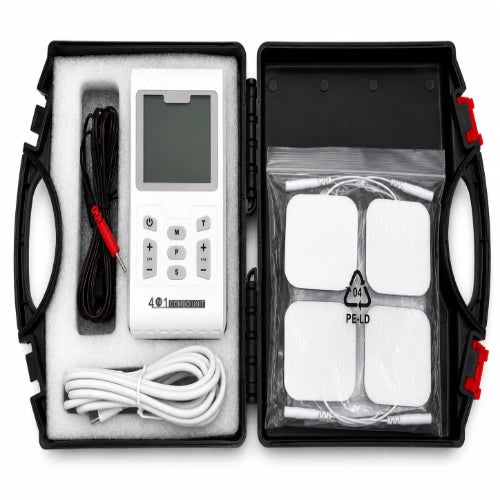

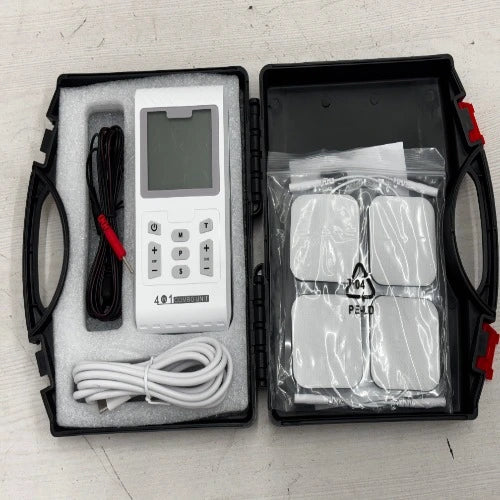

The unit includes an electrical stimulator device, electrode leads, adhesive electrodes, Type-C USB cable, instruction manual and carrying case. Its compact size and battery-powered operation make it easy to carry, store and use in home care or therapy setups.
Key Features
- 4 in 1 Therapy Modes: Supports TENS, EMS, IF and RUSS therapy modes.
- Dual Channel Output: Allows use of two isolated channels for therapy application.
- Adjustable Intensity: Pulse amplitude can be adjusted up to 120mA peak.
- Timer Control: Treatment time can be adjusted from 1 to 90 minutes or continuous mode.
- Reusable Electrode Pads: Supplied with 4 adhesive electrode pads for therapy use.
- Portable Carrying Case: Easy to store and carry with included protective case.
- Battery Powered: Works with 5.0V DC or 4 x AAA batteries.
- Large Digital Display: Shows therapy mode, time, frequency, pulse width and intensity values.
- Home & Therapy Use: Suitable for guided pain relief and muscle stimulation routines.
Technical Specifications
| Specification | Details |
|---|---|
| Therapy Modes | TENS, EMS, IF and RUSS |
| Channel | Dual, Isolated Between Channels |
| Power Supply | 5.0V DC or 4 x AAA Batteries |
| Operating Conditions | 5°C to 40°C, 30%–75% Relative Humidity, 700 to 1060 Hpa Atmospheric Pressure |
| Storage Conditions | -10°C to 50°C, 10%–90% Relative Humidity, 700 to 1060 Hpa Atmospheric Pressure |
| Dimensions | 13.4 x 6.8 x 2.8 cm |
| Weight | 0.45 kg with Carrying Case |
| Tolerance | ±5% Setting Tolerance and ±5% Output Intensity Tolerance |
| Timer | Adjustable from 1 to 90 Minutes or Continuous, 1 Minute Step, Auto Countdown |
TENS Mode Specifications
| Parameter | Details |
|---|---|
| Pulse Amplitude | Adjustable, 0–120mA Peak at 1200 Ohm Load Each Channel, 1mA Step |
| Pulse Width | Adjustable from 50 to 300µs, 1µs Step |
| Pulse Rate | Adjustable from 1 to 800 Hz, 1 Hz Step |
| Application Time | Adjustable from 5 to 90 Minutes, 1 Minute Step |
EMS Mode Specifications
| Parameter | Details |
|---|---|
| Pulse Amplitude | Adjustable, 0–120mA Peak at 1200 Ohm Load Each Channel, 1mA Step |
| Pulse Width | Adjustable from 50 to 300µs, 1µs Step |
| Frequency | Adjustable from 1 to 800 Hz, 1 Hz Step |
| Contraction Time | Adjustable, 0–60 Seconds, 1 Second Step |
| Relaxation Time | Adjustable, 0–60 Seconds, 1 Second Step |
| Ramp Up Time | Adjustable, 0–9 Seconds, 1 Second Step |
| Ramp Down Time | Adjustable, 0–9 Seconds, 1 Second Step |
| Application Time | Adjustable from 5 to 90 Minutes, 1 Minute Step |
IF Mode Specifications
| Parameter | Details |
|---|---|
| Pulse Amplitude | Adjustable, 0–120mA Peak at 1200 Ohm Load Each Channel, 1mA Step |
| PU1 Adjustable Mode | Channel 1 Fixed at 4000 Hz, Channel 2 Selectable 4001 to 4150 Hz, Interference Frequency 1 to 150 Hz |
| PU2 Adjustable Mode | Channel 1 Fixed at 2500 Hz, Channel 2 Selectable 2501 to 2650 Hz, Interference Frequency 1 to 150 Hz |
| Cycle Time | Adjustable from 1 to 150 Seconds, 1 Second Step |
RUSS Mode Specifications
| Parameter | Details |
|---|---|
| Pulse Amplitude | Adjustable, 0–120mA Peak at 1200 Ohm Load Each Channel, 1mA Step |
| PU1 Adjustable Mode | Carrier Frequency Fixed at 2500 Hz, Frequency Adjustable from 1 Hz to 100 Hz, 1.0 Hz Step |
| PU2 Adjustable Mode | Carrier Frequency Fixed at 2000 Hz, Frequency Adjustable from 1 Hz to 100 Hz, 1.0 Hz Step |
| Cycle Time | Adjustable from 1 to 100 Seconds, 1 Second Step |
Included Accessories
| Accessory | Quantity |
|---|---|
| Electrical Stimulator Device | 1 Piece |
| Electrode Leads | 2 Pieces |
| 50 x 50 mm Adhesive Electrodes | 4 Pieces |
| Type-C USB Cable | 1 Piece |
| Instruction Manual | 1 Piece |
| Carrying Case | 1 Piece |
Benefits
- Combines TENS, EMS, IF and RUSS therapy modes in one device.
- Supports pain relief, muscle stimulation and recovery therapy routines.
- Dual channel output helps apply therapy more conveniently.
- Adjustable pulse amplitude, frequency and timer support flexible use.
- Compact size makes it easy to carry and store.
- Included carrying case keeps accessories organised.
- Reusable adhesive electrodes support repeated therapy sessions.
- Suitable for home physiotherapy and professional therapy support.
Suitable For
- Home physiotherapy users
- Physiotherapy clinics
- Rehabilitation centres
- Sports recovery users
- Muscle therapy support
- Pain relief therapy routines
- Healthcare buyers looking for portable electrotherapy device
Applications
- TENS pain relief support
- EMS muscle stimulation
- IF therapy support
- RUSS stimulation therapy
- Muscle recovery support
- Physiotherapy and rehabilitation routines
- Home therapy use under guidance
Why Choose This EMS Muscle Stimulator Machine?
This EMS Muscle Stimulator Machine 4 in 1 Therapy is a practical choice for users who need multiple electrotherapy modes in one compact device. It supports TENS, EMS, IF and RUSS modes with dual channel output, adjustable timer and reusable electrode pads.
Its portable carrying case, Type-C USB cable, digital display and included accessories make it suitable for guided home use, physiotherapy clinics and rehabilitation environments.
Buying Guidance
Before buying, confirm the required therapy mode, electrode pad requirement, battery support, intensity control, timer settings and user guidance. Also check whether this device is suitable for your condition before starting therapy.
Usage Note: This device should be used carefully and only as directed. Do not use it near the heart, head, throat, broken skin or implanted electronic devices. People with pacemakers, pregnancy-related concerns, epilepsy, heart conditions or serious medical issues should consult a doctor before use.
FAQs
1. What is this EMS muscle stimulator machine used for?
It is used for guided pain relief support, muscle stimulation, recovery therapy and physiotherapy routines.
2. What therapy modes are available?
This device supports TENS, EMS, IF and RUSS therapy modes.
3. How many channels does it have?
It has dual isolated channels.
4. What accessories are included?
The set includes an electrical stimulator device, 2 electrode leads, 4 adhesive electrodes, Type-C USB cable, instruction manual and carrying case.
5. What is the power supply?
The device works with 5.0V DC or 4 x AAA batteries.
6. What is the timer range?
The timer is adjustable from 1 to 90 minutes or continuous mode.
7. Can it be used at home?
Yes, it can be used at home under proper guidance and after reading the instruction manual.
8. Who should avoid using this device without medical advice?
People with pacemakers, implanted devices, pregnancy-related concerns, epilepsy, heart conditions or serious medical issues should consult a doctor before use.
