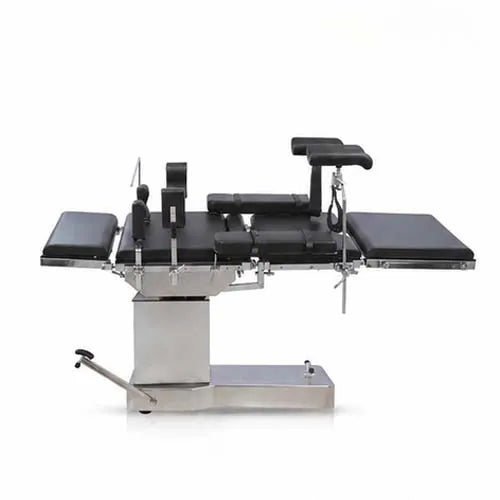

Ortho OT Table 5 Function Dual Mode with C-Arm Compatible Top

Ortho OT Table 5 Function Dual Mode with C-Arm Compatible Top

The Ortho OT Table 5 Function Dual Mode is designed for hospitals and operation theatres that need easy patient setup with imaging access. This ortho OT table combines electric control with a manual backup. Therefore, OT staff can adjust key positions quickly while keeping another control option available.

The tabletop is radiolucent and supports compatible C-Arm and X-ray imaging. As a result, suitable imaging can be done without moving the patient again. In addition, the table supports height, backrest, Trendelenburg, reverse Trendelenburg and leg-section adjustment. Therefore, it can support orthopaedic, general surgery and other suitable procedures.

Key Features

• 5-Function Positioning: Supports height, backrest, Trendelenburg, reverse Trendelenburg and leg adjustment.
• Dual Mode Control: Electric remote operation with manual backup.
• C-Arm Compatible Top: Radiolucent surface supports compatible imaging.
• 700–1000 mm Height Range: Helps staff set a suitable working level.
• Backrest Adjustment: Electric movement from 0° to about +80°.
• Trendelenburg Control: Supports head-down and head-up tilt up to about 25°.
• PU Foam Mattress: Waterproof and anti-bacterial surface, as supplied.
• 180–200 kg Load Capacity: Supports the stated load range, depending on model.

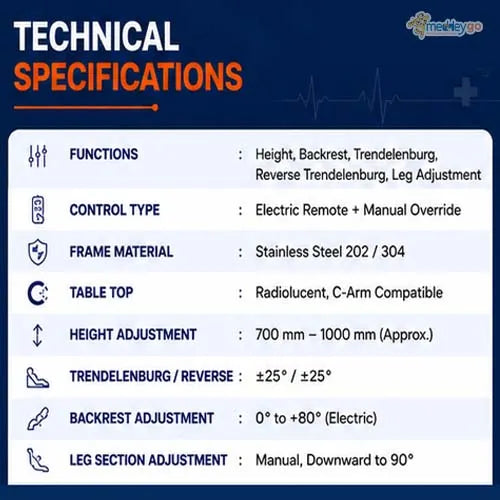

Technical Specifications

Available Material Variants

This ortho OT table comes in two separate variants: SS 202 and SS 304. Therefore, buyers can select the steel grade that matches their needs. SS 202 is a practical choice for regular OT use. In contrast, SS 304 offers better resistance to rust and may suit facilities with stricter cleaning routines.

Benefits

First, electric control reduces effort during common position changes. Next, the manual backup gives staff another option during a power issue. Also, the radiolucent top supports compatible imaging. Therefore, the table can support both patient setup and imaging in one system.

In addition, the adjustable height helps staff work at a suitable level. As a result, the table can support routine OT work across different procedures.

Applications

• Orthopaedic surgery
• General surgery
• Gynecology procedures
• Urology procedures
• ENT and minor surgery
• C-Arm and X-ray guided procedures

How to Use

First, place and secure the table in the required OT position. Next, transfer the patient using the approved hospital method. Then, use the remote to adjust height, backrest or tilt as required. Also, fit the needed accessories. Finally, confirm all positions and supports before the procedure starts.

Why Choose This Ortho OT Table?

This ortho OT table combines five-position control, dual mode operation and C-Arm access in one system. Therefore, it suits hospitals that need flexible patient setup for different procedures. Moreover, the dual control system gives staff both electric operation and a manual backup option.

Buying Guidance

Before ordering, confirm the steel grade, load limit and C-Arm fit with your imaging system. Also, verify the final accessories because the stated 180–200 kg load range may vary by model.

Professional Use Note: Only trained OT staff should operate the table. Also, check the electric controls, manual backup, mattress, accessories and locking points before every procedure.

Frequently Asked Questions

What are the five functions?
Height, backrest, Trendelenburg, reverse Trendelenburg and leg-section adjustment.

What does dual mode mean?
It provides electric remote control with a manual backup.

Is this ortho OT table C-Arm compatible?
Yes. The supplied tabletop is radiolucent for compatible C-Arm imaging.

Which material variants are available?
The table is available in SS 202 and SS 304 variants.

What is the height range?
The supplied height range is about 700 to 1000 mm.

What is the load capacity?
The stated capacity is about 180–200 kg, depending on the model.

Is a mattress included?
Yes. A waterproof PU foam mattress is included as supplied.
