Focused LED Light Support for Newborn Jaundice Care
15 LED
High-Power LEDs
Blue Light Support
420–480
nm Wavelength
Suitable Light Range
>42
Light Output
µW/cm²/nm at 30 cm
⚙️
Mobile Stand
Easy Positioning

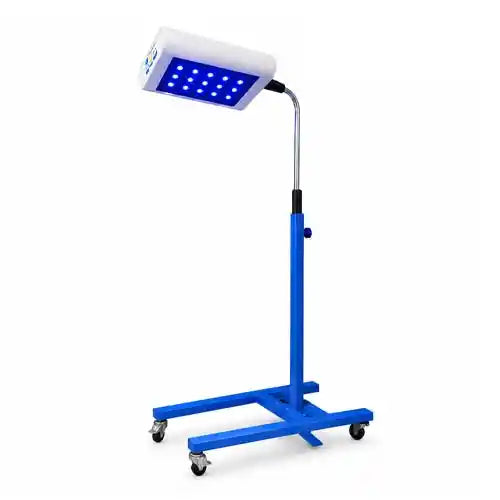

Standing Phototherapy Unit 15 LED for Newborn Care
The Phototherapy Unit is designed for hospitals, NICUs, maternity centres and newborn care areas. It provides LED light support for babies who need phototherapy for clinically assessed jaundice. Therefore, it can be placed above a suitable bassinet, warmer or newborn bed.
The unit uses 15 high-power LEDs. Also, the supplied light range is approximately 420–480 nm. As a result, the unit provides focused blue light for professional newborn care.
In addition, the mobile floor stand makes movement easier. Therefore, staff can position the light over the required treatment area and move the unit when needed.

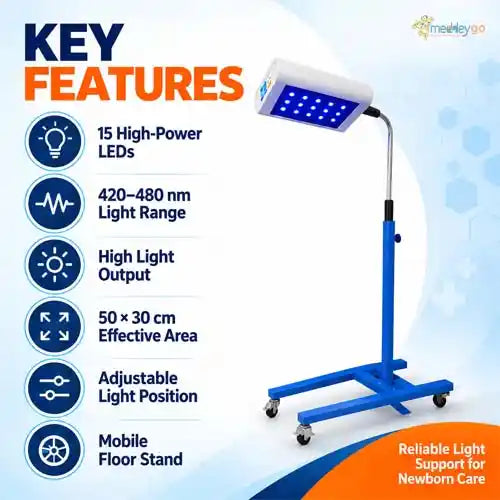

Key Features
-
15 High-Power LEDs: Provides strong blue light for suitable newborn phototherapy.
-
420–480 nm Light Range: Supports the supplied blue-light treatment range.
-
High Light Output: Provides more than 42 µW/cm²/nm at about 30 cm.
-
50 × 30 cm Effective Area: Therefore, the light can cover a practical newborn treatment area.
-
Mobile Floor Stand: Also, the wheeled base helps staff move the unit between care areas.
-
Adjustable Light Position: In addition, the stand helps staff direct the light over the baby.
-
Long LED Life: Finally, the supplied light-source life is at least 25,000 hours.

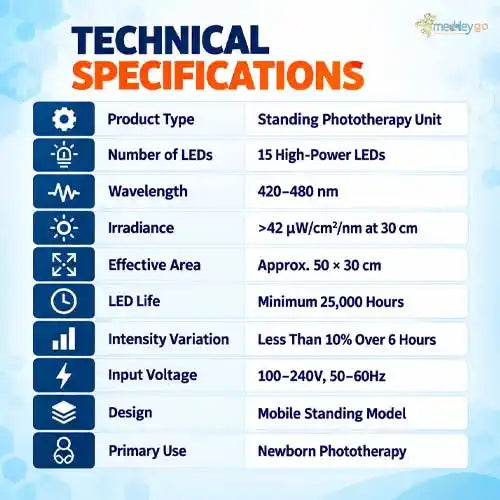

Technical Specifications
| Specification |
Details |
| Product Type |
Standing Phototherapy Unit |
| Number of LEDs |
15 High-Power LEDs |
| Wavelength |
420–480 nm |
| Irradiance |
>42 µW/cm²/nm at 30 cm |
| Effective Area |
Approx. 50 × 30 cm |
| LED Life |
Minimum 25,000 Hours |
| Intensity Variation |
Less Than 10% Over 6 Hours |
| Input Voltage |
100–240V, 50–60Hz |
| Design |
Mobile Standing Model |
| Primary Use |
Newborn Phototherapy |
Practical Benefits
First, the LED head gives focused light over the treatment area. Therefore, staff can maintain the required setup according to the care plan.
Next, the wheeled stand makes movement easier. Also, the long LED life helps reduce frequent lamp changes. As a result, the phototherapy unit is practical for regular newborn care.

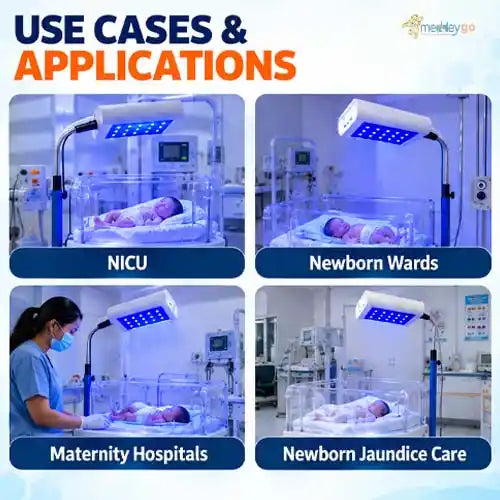

Suitable Use Areas
NICU
Supports prescribed newborn phototherapy.
Newborn Wards
Also useful where mobile light support is required.
Maternity Hospitals
Suitable for newborn jaundice care under medical supervision.
Pediatric Facilities
Provides movable light support for suitable newborn care setups.
Planning a NICU or Newborn Care Setup?
This phototherapy unit is suitable for hospitals, maternity centres and newborn care units. Therefore, buyers can plan quantity according to the number of newborn beds and expected treatment needs. Also, the mobile design can help when one unit needs to move between suitable care areas.
Buying Guidance
First, confirm the required wavelength and light output. Next, check the working distance. Also, measure the available space around the newborn bed or warmer. Finally, make sure the standing unit can be placed safely without blocking staff access.
Setting Up or Expanding Your Newborn Care Facility?
Whether you need one Phototherapy Unit or multiple units, share your hospital or NICU requirement with MeddeyGo. In addition, our team can help with product details, quantity planning and buying support.
8586012345 | Mon–Sat 10:30 AM–6:00 PM
Share your required quantity, facility type and location for assistance.
Professional Use Note: First, place the unit at the required treatment distance. Next, protect the baby's eyes according to hospital protocol. Also, monitor the baby during therapy. Finally, follow the treatment plan set by the pediatric or newborn care team.
Frequently Asked Questions
What is this phototherapy unit used for?
It is used for newborn phototherapy under professional medical care.
How many LEDs are provided?
The unit uses 15 high-power LEDs. Therefore, it provides focused blue light over the treatment area.
What is the wavelength range?
The supplied range is 420–480 nm.
What is the light output?
The supplied irradiance is more than 42 µW/cm²/nm at 30 cm.
What is the effective area?
The effective light area is approximately 50 × 30 cm.
How long does the LED source last?
The listed life is at least 25,000 hours. Therefore, frequent lamp replacement may be reduced.
Is the unit mobile?
Yes. Also, the wheeled stand makes repositioning easier within suitable care areas.
Can hospitals order multiple units?
Yes. Hospitals and newborn care centres can share their required quantity and location with MeddeyGo for buying support.
