Clear & Uniform X-Ray Film Viewing for Clinical Settings
7000+
High Brightness
More Than 7000 Lux
45mm
Slim Profile
Space-Efficient Design
💡
Auto Film Sensor
Automatic Light Activation
☀️
Dimmer Control
Adjustable Illumination

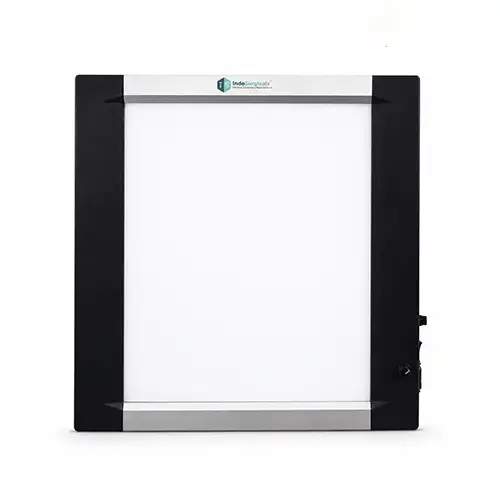

LED X-Ray View Box Single Film with Dimmer & Sensor
The X Ray View Box is designed for hospitals, diagnostic centres, radiology clinics, orthopaedic practices and other healthcare facilities that need clear radiographic film viewing. Its single-film viewing area uses high-efficiency white LEDs to provide bright and consistent illumination for routine clinical review.
The unit combines a 45 mm slim profile, automatic film detection sensor and manual brightness dimmer. Therefore, healthcare professionals can adjust illumination according to the film and viewing environment. In addition, the compact design supports both wall-mounted and desk-top installation.

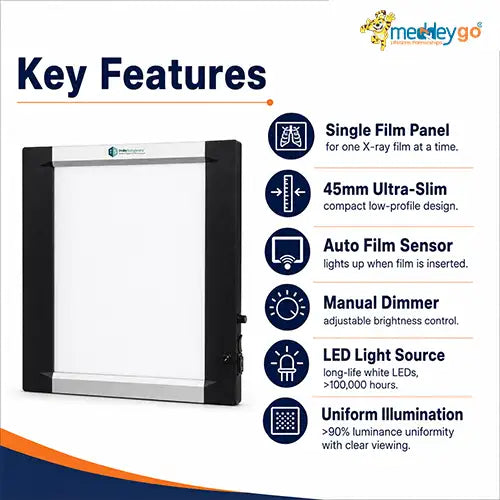

Key Features
-
Single Film Viewing Panel: Designed to display one radiographic film at a time with consistent backlighting.
-
More Than 7000 Lux: Provides high illumination for clear viewing of radiographic details.
-
Over 90% Luminance Uniformity: Helps maintain even illumination across the viewing surface.
-
Automatic Film Sensor: Activates the viewing light when a film is inserted.
-
Manual Brightness Dimmer: Allows users to adjust illumination according to viewing requirements.
-
45 mm Slim Body: Provides a compact profile for space-conscious clinical environments.
-
Long-Life LED Source: Listed LED operating life is more than 100,000 hours.
-
Film Clamping System: Helps keep X-ray films securely positioned during viewing.
-
Flexible Installation: Suitable for wall mounting or desk-top placement.

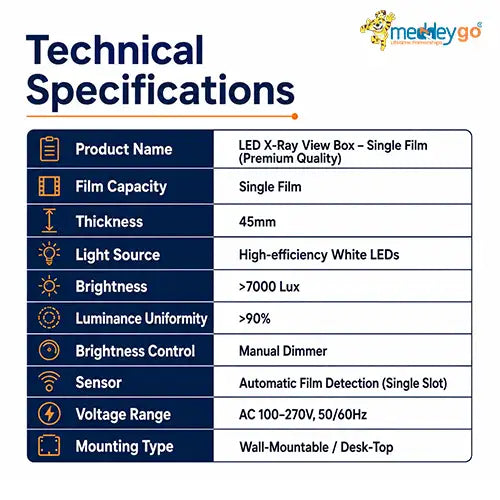

Technical Specifications
| Specification |
Details |
| Product Type |
LED X-Ray View Box |
| Film Capacity |
Single Film |
| Thickness |
45 mm |
| Light Source |
High-Efficiency White LEDs |
| Brightness |
More Than 7000 Lux |
| Luminance Uniformity |
More Than 90% |
| Brightness Control |
Manual Dimmer |
| Film Sensor |
Automatic Film Detection |
| LED Life |
More Than 100,000 Hours |
| Light Frequency |
More Than 50 Hz |
| Power Supply |
AC 100–270V, 50/60Hz |
| Installation |
Wall-Mounted / Desk-Top |
Why Choose This Single Film X-Ray View Box?
The single-panel design suits consultation rooms and diagnostic areas where one radiographic film needs to be reviewed at a time. Moreover, the automatic sensor reduces the need to operate the light manually whenever a film is inserted.
The dimmer provides additional control over brightness, while more than 90% illumination uniformity supports consistent viewing across the panel. As a result, the unit provides a practical combination of illumination, compact size and simple operation.
Clinical Applications
🩻 Radiology Clinics
For routine viewing of compatible X-ray films.
🏥 Hospitals
Useful across suitable diagnostic and consultation areas.
🦴 Orthopaedic Clinics
Supports convenient radiographic film review during consultation.
🔬 Diagnostic Centres
Compact film-viewing solution for imaging departments.
Planning a Radiology or Diagnostic Setup?
This X Ray View Box is suitable for hospitals, diagnostic centres, radiology departments, orthopaedic clinics and medical facilities that require a compact single-film viewing panel. For larger facilities, buyers can plan quantity according to the number of consultation rooms, reporting areas and film-viewing stations.
Choosing the Right X-Ray View Box
Before ordering, consider how many films need to be viewed at once. This single-film model is suitable where compact size is preferred. Also, confirm whether wall mounting or desk placement better suits the room layout. Facilities needing simultaneous comparison of multiple films may consider larger multi-film configurations.
Setting Up or Upgrading Your Diagnostic Facility?
Whether you require one Single Film X-Ray View Box or multiple units, share your hospital, clinic or diagnostic-centre requirement with MeddeyGo. Our team can assist with product configuration, quantity planning, availability and institutional procurement.
8586012345 ( Mon-Sat 10:30am-6pm)
Share your required quantity, facility type and location for procurement assistance.
Frequently Asked Questions
How many films can this X ray view box display?
It is designed as a single-film viewing panel.
What is the brightness of the viewing panel?
The listed illumination is more than 7000 Lux.
Does it have adjustable brightness?
Yes. A manual dimmer is provided for brightness adjustment.
Does the light switch on automatically?
Yes. The unit has an automatic film-detection sensor.
How uniform is the illumination?
The listed luminance uniformity is more than 90%.
What is the thickness of the unit?
The X-ray view box has a 45 mm slim profile.
Can it be mounted on a wall?
Yes. The unit supports wall-mounted as well as desk-top installation.
Can hospitals and diagnostic centres order multiple units?
Yes. Institutional buyers can share their required quantity and location with MeddeyGo for procurement assistance.
