12 Channel ECG Machine with Auto Analysis and Diagnosis Function
12 Channel ECG Machine with Auto Analysis and Diagnosis Function
In stock
- Free shipping over ₹500
- 7 Day Returns
Couldn't load pickup availability
Share this product

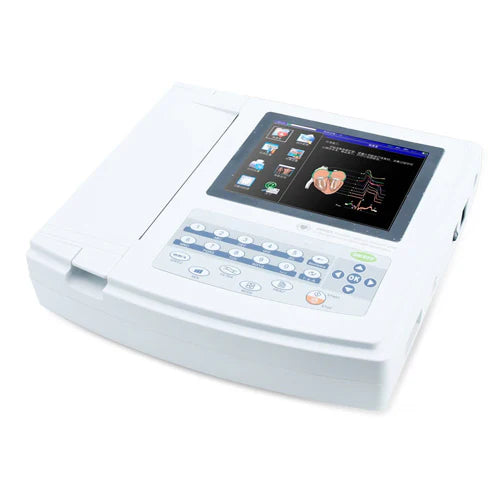

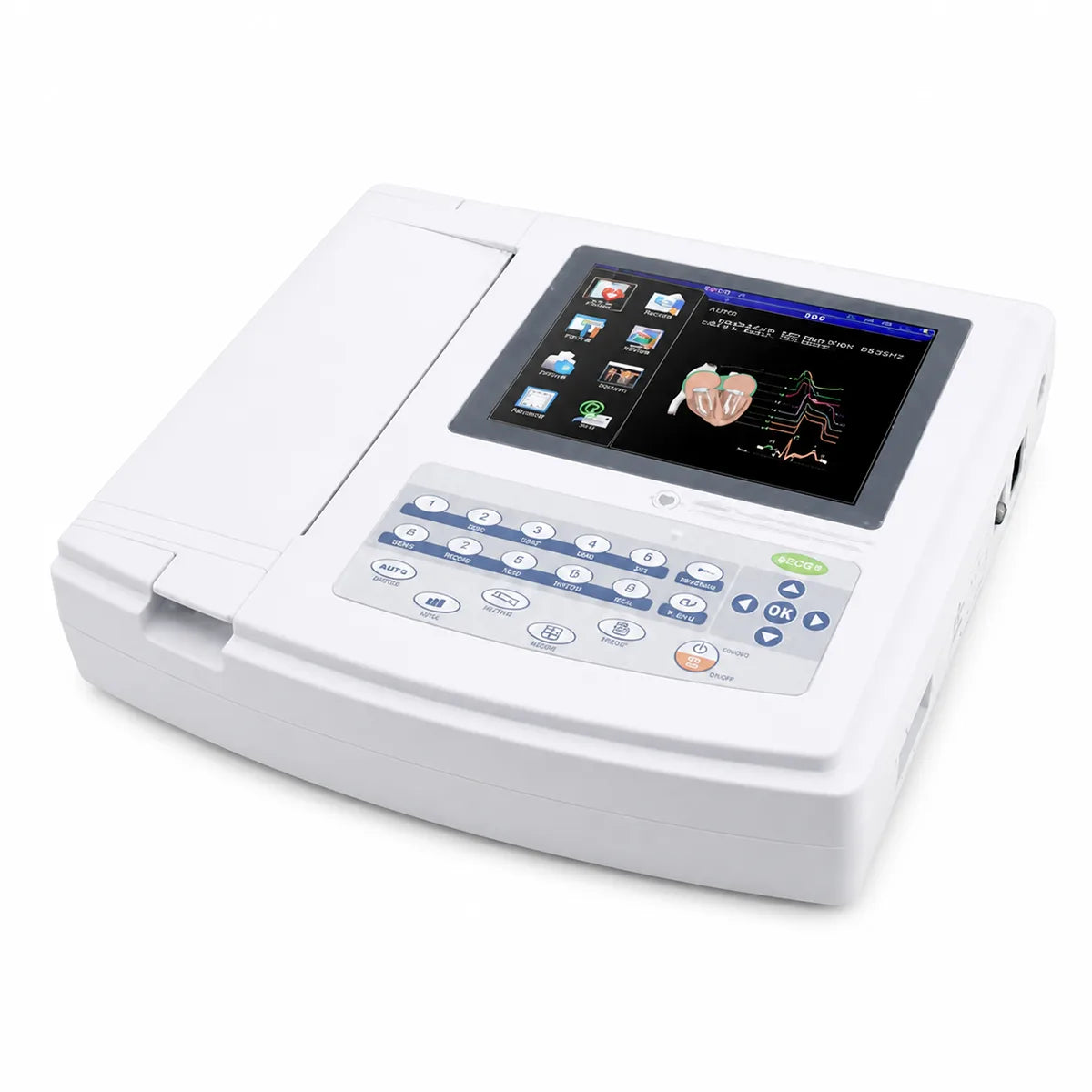

12 Channel ECG Machine with Auto Analysis and Diagnosis
This 12 Channel ECG Machine is a state of the art diagnostic tool designed for precise and efficient cardiac monitoring. Equipped with a high resolution display and intelligent analysis capabilities it is an ideal choice for hospitals clinics and diagnostic centers.
Features
- 12 channel simultaneous acquisition for accurate and comprehensive ECG readings
- High resolution color screen with touch functionality for intuitive operation
- Auto analysis and diagnosis function for quick clinical assessments
- Multiple filter options including AC baseline and EMG for clear waveform display
- Various printing formats such as 3x4 6x2 and 12x1 for clinical flexibility
- Built in memory for storing hundreds of patient records
- Rechargeable battery supporting long standby and operation time
- USB and LAN ports for easy data transfer and connectivity

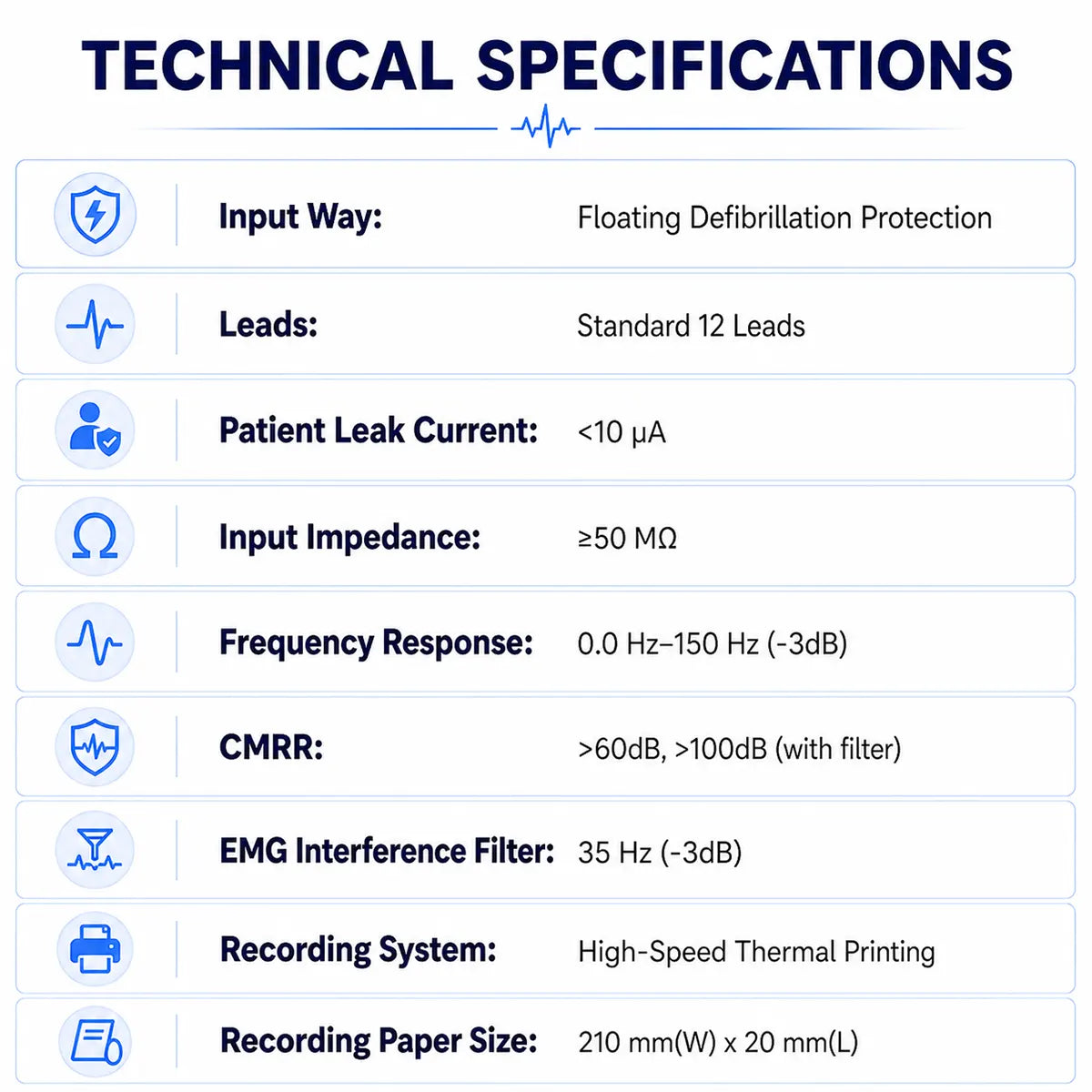

Key Specifications
- Display: 8 inch TFT touch screen for high visibility
- Leads: 12 channel acquisition with 3 6 12 lead selectable display
- Paper Speed: 5 10 25 50 mm per second
- Input Impedance: >10 MOhm
- Filters: EMG AC and baseline filters
- Storage: Internal memory with capacity to save up to 300 ECG reports
- Connectivity: USB and LAN port for PC interface and data export
- Power Supply: Rechargeable lithium battery and AC power adapter
