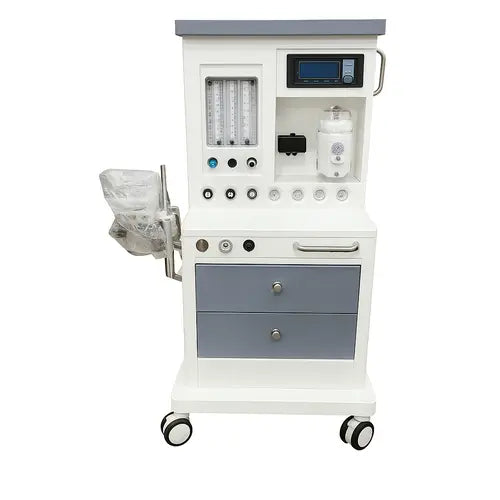

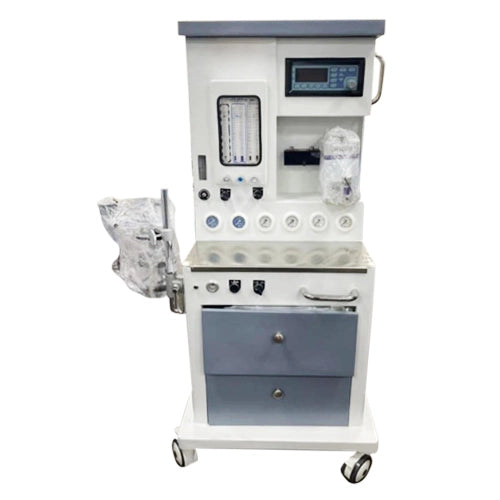

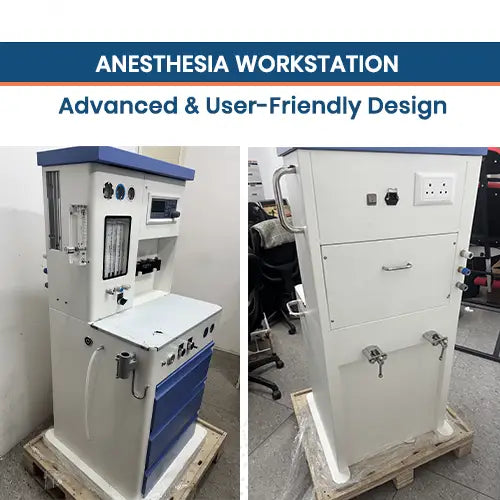

Anesthesia Workstation – Advanced & User-Friendly Design

Anesthesia Workstation for Adult & Pediatric Use

Safe anesthesia delivery is critical in every surgical and emergency environment. Therefore, the Anesthesia Workstation is engineered to provide controlled, accurate, and reliable anesthesia management for both adult and pediatric patients. In modern operating theatres and intensive care units, precision and workflow efficiency are equally important. Consequently, this advanced anesthesia machine integrates ventilation control, gas management, and digital monitoring into one structured system.

Because anesthesia requires continuous observation and rapid clinical response, this workstation supports stable parameter monitoring throughout surgical procedures. Moreover, its ergonomic layout ensures that anesthesiologists can access controls quickly. As a result, procedural interruptions are minimized and patient safety remains prioritized.

Integrated Ventilation and Monitoring

The workstation includes an integrated anesthesia ventilator that delivers tidal volumes ranging from 50 ml to 1600 ml. Therefore, it accommodates both pediatric and adult respiratory requirements. In addition, the adjustable breath frequency range of 3 to 100 breaths per minute allows clinicians to tailor ventilation strategies according to surgical demands.

Furthermore, the 7-inch TFT touchscreen display presents real-time data clearly and consistently. Because visibility is essential in controlled lighting environments, the high-light LED interface enhances readability. Consequently, clinicians can adjust settings quickly without losing procedural focus.

Comprehensive Gas Delivery Control

Accurate gas delivery is fundamental in anesthesia practice. Therefore, this anesthesia workstation supports oxygen (O2), nitrous oxide (N2O), and air via twin cascaded flowmeters for O2 and N2O, along with a dedicated air flowmeter. Because independent oxygen control improves safety, the system includes a dedicated oxygen flowmeter and an O2 flush mechanism.

The N2O tube supports flow ranges of 0.1–1 L/min and 1–12 L/min. Meanwhile, the air tube operates between 0.1–15 L/min. Additionally, the oxygen flush provides rapid flow between 25–75 L/min when immediate oxygenation is required. As a result, emergency responsiveness improves during critical phases of anesthesia delivery.

Moreover, the system is compatible with both ‘A’ and ‘B’ type cylinders as well as central gas supply systems. Therefore, it adapts seamlessly to varied hospital infrastructures.

Flexible Circuit System

Surgical procedures vary in complexity and duration. Therefore, the workstation includes a changeover system that allows switching between open/Bains and closed circuit modes. Because flexibility enhances clinical control, anesthesiologists can select the most appropriate breathing configuration for each case.

In addition, an optional Goldman-type Halothane vaporizer expands anesthesia administration options. Consequently, the system supports diverse clinical protocols.

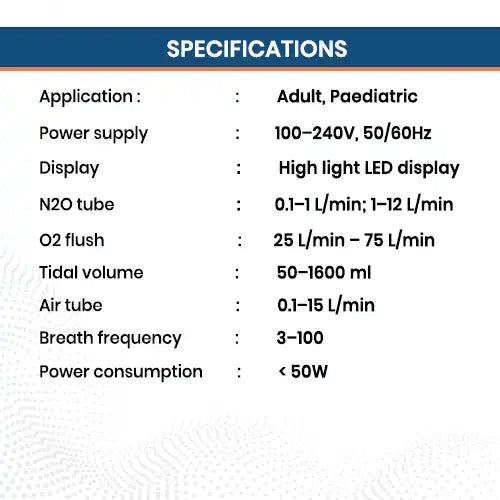

Technical Specifications

• Application: Adult and Pediatric patients
• Power Supply: 100–240V, 50/60Hz
• Display: High Light LED with 7" TFT Touchscreen
• N2O Tube Flow Range: 0.1–1 L/min; 1–12 L/min
• O2 Flush Range: 25 L/min – 75 L/min
• Tidal Volume Range: 50–1600 ml
• Air Tube Flow Range: 0.1–15 L/min
• Breath Frequency: 3–100 breaths per minute
• Power Consumption: Less than 50W
• Gas Flowmeters: Twin Cascaded for O2 & N2O; Single for Air
• Gas Source Compatibility: ‘A’ Type, ‘B’ Type Cylinders and Central Gas Supply
• Circuit Mode: Open/Bains and Closed Circuit Changeover System
• Vaporizer: Goldman-Type Halothane Vaporizer (Optional)

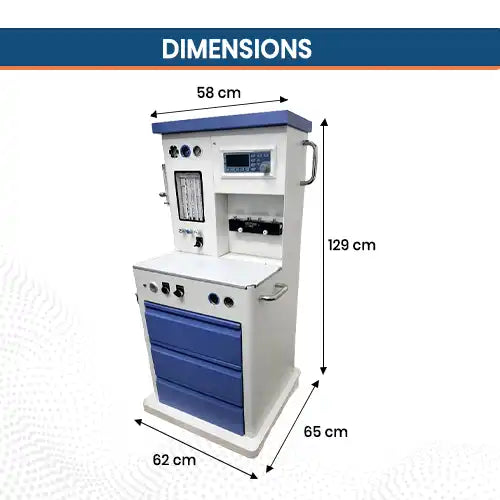

• Dimensions: Height 129 cm; Width 58 cm; Base 62 x 65 cm

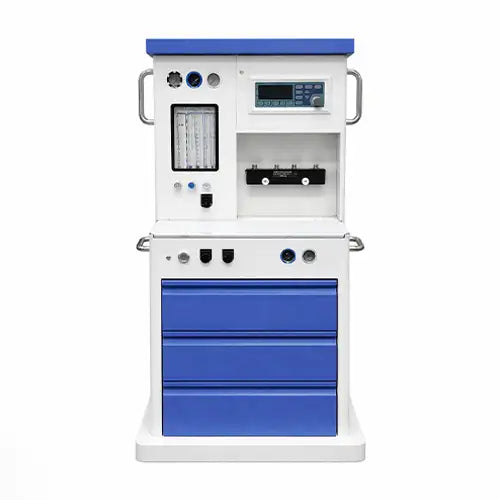

Design and Ergonomics

The workstation features a compact yet stable structure measuring approximately 129 cm in height and 58 cm in width. Therefore, it fits efficiently into operating room layouts without occupying excessive space. In addition, the 62 x 65 cm base ensures structural stability during extended procedures.

Integrated storage drawers further enhance organization. Because quick access to accessories improves workflow, essential tools remain readily available during procedures. Consequently, operating room efficiency improves without compromising safety.

Clinical Applications

This anesthesia workstation is suitable for operating theatres, emergency surgical suites, and intensive care units. Because it supports both adult and pediatric ventilation, it adapts to multi-specialty hospitals and surgical centers.

It is commonly used in general surgery, orthopedics, ENT procedures, gynecology, and other surgical specialties. Therefore, it serves as a versatile and dependable solution in structured clinical environments.

Why Choose Meddey Technologies Pvt. Ltd.

Meddey Technologies Pvt. Ltd. focuses on clinically reliable and professionally engineered medical equipment. Because anesthesia delivery demands high safety standards, each workstation is developed with precision and durability in mind. Moreover, structured quality checks ensure dependable long-term performance.

Located in Okhla Industrial Area, New Delhi, Meddey Technologies supports hospitals and surgical facilities with consistent service and transparent communication. As a result, healthcare institutions can invest confidently in advanced anesthesia solutions.
