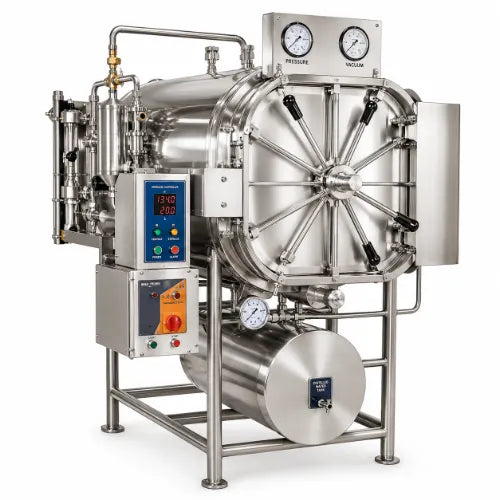

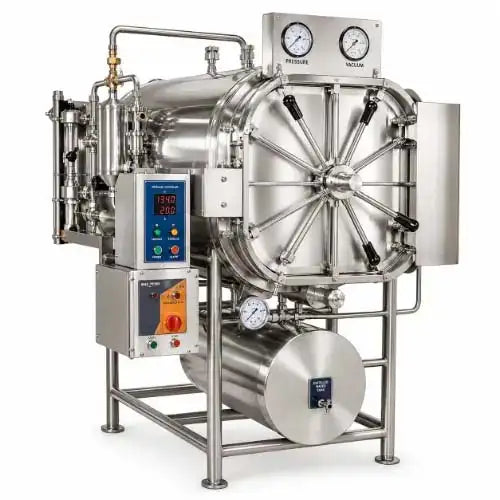

Autocalve Horizontal Automatic PLC Rectangular, SS 304 Delux, Automatic

The Autoclave Horizontal Automatic PLC Rectangular SS 304 Delux is a professional high-pressure steam sterilizer designed for hospitals, laboratories, pharmaceutical facilities, diagnostic centres, CSSD areas, research labs, and healthcare sterilization departments. This horizontal rectangular autoclave supports sterilization of compatible surgical instruments, laboratory glassware, vessels, filters, liquids, machine parts, and reusable medical equipment where controlled steam sterilization is required.

This autoclave is engineered with a triple-walled rectangular chamber design and SS 304 stainless steel construction for the pressure vessel, boiler, jacket, lid, inner chamber, and external wall. The rectangular layout helps improve chamber utilization for larger loads, while the automatic PLC-based operation supports process control and workflow consistency for trained users.

The unit is designed for critical sterilization applications where reliable microbial control is required. It works using saturated steam under pressure, with a listed sterilizing pressure of 1.2 kgf/cm² / 15 PSI at 121°C and operating pressure from 15 PSI to 20 PSI. For safe operation, the system includes pressure monitoring, low water cut-off support, automatic pressure control, safety valves, moisture trap, vacuum breaker, and a positive self-locking safety door mechanism.

Product Overview

The Horizontal Rectangular Autoclave Triple Walled is suitable for facilities that need assured sterilization workflow for larger loads. Its inner chamber, steam jacket, outer chamber, and boiler are made from heavy gauge stainless steel with leak-proof argon arc welding. The space between the outer chamber and steam jacket is filled with glass wool to help minimize thermal losses during operation.

The radial locking lid is made from thick stainless steel plate, and the unit is designed with a self-locking safety door that cannot be opened while the chamber is under pressure. This supports operator safety and helps prevent accidental opening during pressurized operation.

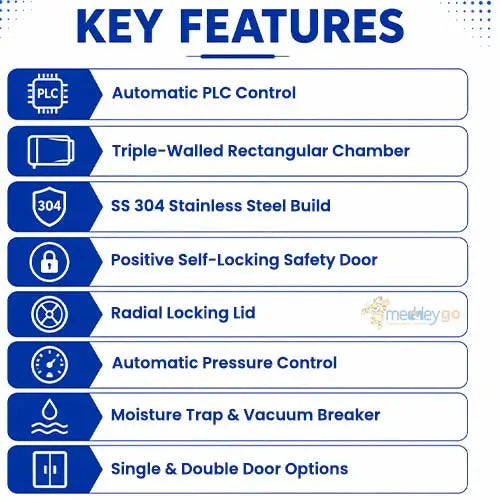

Key Features

• Automatic PLC Control: Supports controlled sterilization cycle operation for professional healthcare and laboratory workflows.
• Triple-Walled Rectangular Chamber: Designed for better heat retention, chamber utilization, and bulk sterilization handling.
• SS 304 Stainless Steel Build: Pressure vessel, boiler, jacket, lid, inner chamber, and external wall are made from SS 304 stainless steel.
• Positive Self-Locking Safety Door: Door cannot be opened while chamber is under pressure and disengages after chamber exhaust.
• Radial Locking Lid: Thick stainless steel lid with radial locking support for secure chamber sealing.
• Automatic Pressure Control: Boiler includes water level indicator, pressure gauge, low water cut-off device, and automatic pressure control device.
• Moisture Trap & Vacuum Breaker: Chamber discharge line includes moisture trap, and automatic vacuum breaker helps manage vacuum after steam condensation.
• Single & Double Door Options: Multiple capacity variants are available in single-door and double-door configurations.

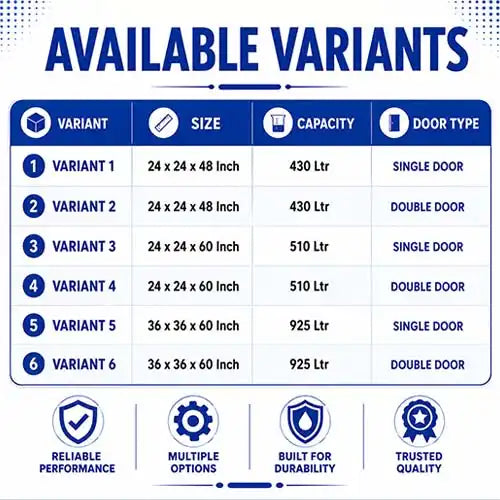

Available Variants

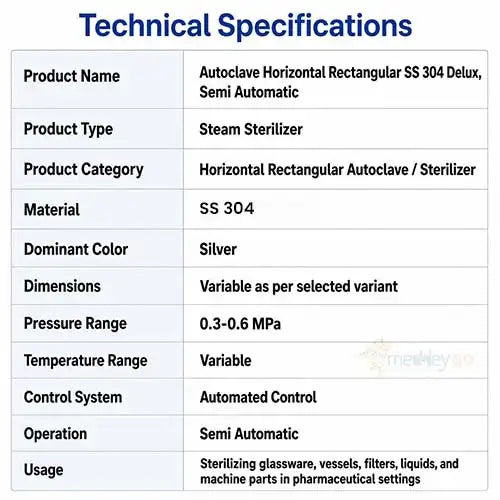

Technical Specifications

Product Benefits

• Supports reliable sterilization workflow for hospitals, laboratories, pharma units, and CSSD environments.
• Automatic PLC operation helps improve cycle control and process consistency.
• Triple-walled structure helps reduce thermal losses and supports stable chamber conditions.
• SS 304 stainless steel construction supports durability and corrosion resistance.
• Self-locking safety door helps protect users from accidental opening under pressure.
• Moisture trap and vacuum breaker support better drying and chamber pressure management.
• Single-door and double-door options support different workflow and contamination-control layouts.
• Multiple capacity options support higher workload sterilization requirements.

Applications

This automatic PLC horizontal rectangular autoclave is suitable for hospitals, CSSD departments, operation theatres, pharmaceutical facilities, diagnostic laboratories, microbiology labs, research centres, medical colleges, and industrial sterilization environments. It can be used for compatible surgical instruments, laboratory glassware, vessels, filters, liquids, and machine parts.

It is intended for professional sterilization workflow where controlled steam, pressure, temperature, and exposure time are required. Only materials suitable for steam sterilization should be processed inside the chamber.

How to Use

1. Install the autoclave in a suitable sterilization area with proper electrical supply, drainage, ventilation, and clearance.
2. Inspect the chamber, door, gasket, pressure gauge, water level indicator, safety valves, and control system before use.
3. Load compatible items in approved packs or containers without blocking steam circulation.
4. Close the door and ensure the self-locking safety mechanism is properly engaged.
5. Select the appropriate PLC cycle settings according to load type and facility protocol.
6. Allow the unit to complete sterilization, exhaust, drying if selected, and cooling phases as required.
7. Open the chamber only after pressure is safely released and the cycle is complete.
8. Unload processed items carefully and clean the chamber according to facility and user manual instructions.

Why Choose This Automatic PLC Rectangular Autoclave?

This autoclave is suitable for facilities that need a high-capacity rectangular steam sterilizer with automatic PLC control, SS 304 construction, triple-walled build, safety door support, and single-door or double-door options. It supports demanding sterilization workflows in healthcare, pharmaceutical, research, and diagnostic settings.

Its controlled operation, durable structure, and safety-focused features make it practical for institutions requiring repeatable steam sterilization cycles. Buyers should confirm final chamber size, capacity, electrical supply, site readiness, installation process, and operational requirements before purchase.

FAQs

1. What is this automatic PLC rectangular autoclave used for?

This autoclave is used for steam sterilization of compatible surgical instruments, laboratory glassware, vessels, filters, liquids, machine parts, and reusable medical items. It is suitable for hospitals, laboratories, CSSD areas, and pharmaceutical facilities.

2. What is the benefit of automatic PLC control?

Automatic PLC control helps manage sterilization cycle functions more systematically. It supports process consistency, user convenience, and controlled workflow when operated by trained personnel according to selected cycle settings and facility protocol.

3. What material is used in the pressure vessel and boiler?

The pressure vessel and boiler are made from stainless steel SS-304 as per the provided specifications. The jacket, lid, and external wall are also listed as SS-304, supporting durability and professional sterilization use.

4. What capacities are available?

The supplied specifications mention 175 Ltr for inner dimensions 18 x 18 x 36 inch. Additional variants include 430 Ltr, 510 Ltr, and 925 Ltr in single-door and double-door configurations, depending on selected model.

5. Who should operate this autoclave?

This autoclave should be operated by trained sterilization staff, laboratory personnel, pharmaceutical operators, biomedical technicians, or authorized users. Since it works with steam, pressure, heat, and electrical systems, safety protocol must be followed.
