BPL ECG Machine Cardiart 9108D with 12 Channel Recording

BPL ECG Machine Cardiart 9108D for 12-Lead Cardiac Assessment

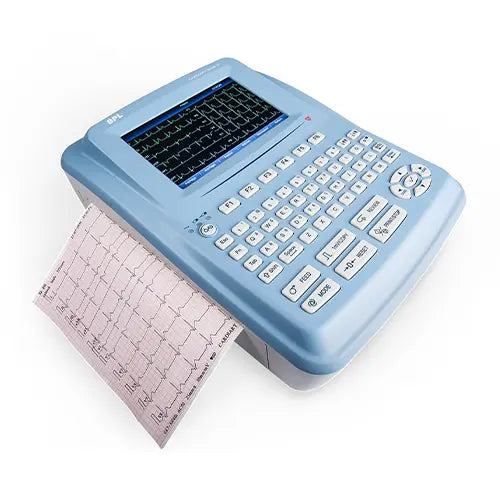

The BPL ECG machine Cardiart 9108D is a 12-channel electrocardiograph designed for resting ECG recording in hospitals, cardiology clinics and diagnostic centres. It acquires all 12 ECG leads simultaneously. Therefore, healthcare professionals can capture cardiac electrical activity during a single recording session.

The machine features a 7-inch high-resolution colour LCD for viewing ECG waveforms and recording information. Also, its Glasgow ECG Interpretation algorithm provides computer-generated analysis to assist clinical review. However, qualified healthcare professionals must interpret the results alongside the patient's clinical findings.

The BPL Cardiart 9108D uses 24-bit digital signal conversion and supports internal storage of up to 800 ECG records. In addition, USB and SD card options help manage stored reports. Its rechargeable lithium-ion battery supports use where mains power is not continuously available.

For hospitals planning digital reporting workflows, the system also offers optional connectivity and data-export functions. As a result, buyers can select a configuration that meets their department's recording and record-management needs.

Key Features

• Simultaneous 12-Lead ECG: Records all standard ECG leads together for resting cardiac assessment.
• 7-Inch Colour Display: Provides a high-resolution screen for waveform review and operation.
• Glasgow Interpretation: Offers computer-assisted ECG interpretation for professional review.
• 24-Bit A/D Converter: Supports detailed conversion of acquired ECG signals into digital data.
• High Sampling Frequency: Provides 16,000 Hz sampling and a listed bandwidth of 0.01–300 Hz.
• ECG Record Storage: Stores up to 800 ECG recordings internally, with external storage support.
• Rechargeable Battery: Includes lithium-ion battery technology for portable ECG workflows.
• Connectivity Options: Supports USB and advanced integration options, including optional Wi-Fi and compatible PC software.

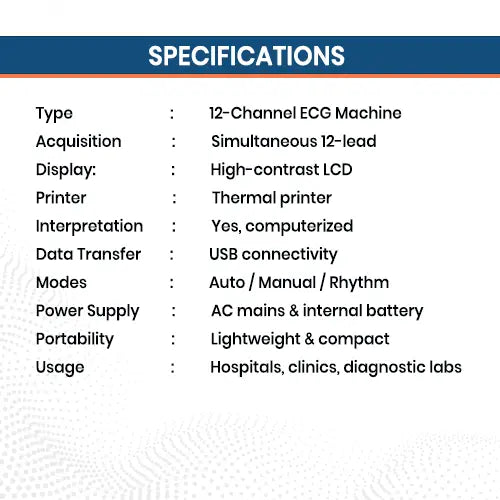

Technical Specifications

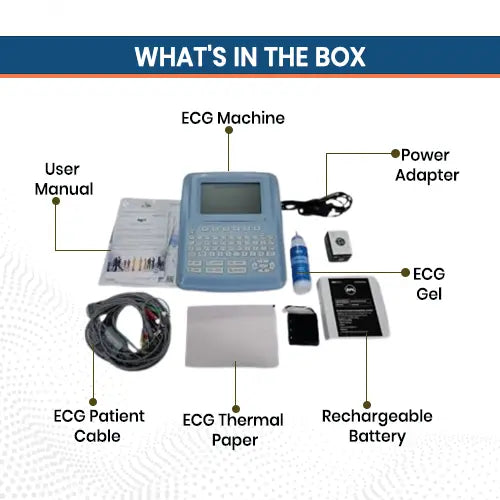

ECG Machine Accessories

The standard ECG setup includes essential patient connection and recording accessories. Confirm the final supply quantity before placing an institutional order.

• ECG Patient Cable
• Chest / Bulb Electrode Set
• Limb Clamp Electrode Set
• ECG Gel Bottle
• Power Cable
• Earthing Cable
• User Manual

Benefits for Doctors and Cardiology Teams

First, simultaneous 12-lead acquisition allows clinicians to review a complete resting ECG recording. Also, the high-resolution colour display makes waveform inspection convenient during routine testing.

In addition, the Glasgow algorithm provides computer-generated interpretation. Therefore, doctors can review its findings alongside their own ECG assessment.

The internal memory also supports organised record management. Moreover, optional connectivity features can help institutions develop a suitable digital reporting workflow.

However, automated interpretation does not replace clinical judgement. A qualified healthcare professional must review ECG findings in the context of symptoms and other examinations.

Applications in Healthcare Facilities

Basic ECG Recording Procedure

1. First, position the ECG machine securely and check the power supply.
2. Next, inspect the patient cable and electrodes.
3. Prepare the patient's skin and attach the electrodes in the correct positions.
4. Enter the required patient information and select the recording settings.
5. Then capture the 12-lead ECG while the patient remains suitably positioned.
6. Review signal quality and repeat the recording if clinically necessary.
7. Finally, save or print the report and arrange qualified clinical interpretation.

Who Should Buy the BPL Cardiart 9108D?

The BPL ECG machine Cardiart 9108D is suitable for hospitals, cardiology clinics, diagnostic centres and healthcare facilities that require 12-channel ECG recording.

Also, institutional procurement teams can consider its display, internal storage and data-management functions when planning an ECG workstation. Before buying, compare the standard configuration with the department's reporting and connectivity requirements.

Hospital ECG Machine Buying Checklist

1. ECG Recording: First, confirm simultaneous 12-lead acquisition and available recording modes.
2. Display Configuration: Next, check whether the supplied unit includes the optional touchscreen.
3. Interpretation: Review the Glasgow algorithm and reporting requirements.
4. Report Management: Also, check PDF export, USB and SD card functions.
5. Connectivity: Confirm whether Wi-Fi, barcode scanning or EMR integration is required.
6. Accessories: Check cables, electrodes, ECG paper and all included components.
7. Service Support: Finally, confirm warranty, installation, training and maintenance arrangements.

Need BPL ECG Machines for Your Hospital or Clinic?

Get assistance with product specifications, availability and bulk procurement. Our team can help you choose suitable ECG equipment for your healthcare facility's requirements.

Share your required quantity, department and delivery location for a quotation.

Frequently Asked Questions

How many channels does the BPL Cardiart 9108D have?

The Cardiart 9108D is a 12-channel ECG machine. It supports simultaneous acquisition of all 12 standard ECG leads.

What display does this BPL ECG machine use?

It features a 7-inch high-resolution colour LCD. A touchscreen configuration is also available as an option.

Does the Cardiart 9108D provide ECG interpretation?

Yes. It includes the Glasgow ECG Interpretation algorithm. However, a qualified clinician must review the interpretation.

How many ECG reports can the machine store?

The internal memory supports up to 800 ECG records. Also, USB and SD card storage can extend record-management options.

Can ECG reports be exported as PDF files?

Yes. The system supports PDF reporting. Additional data formats are available with the appropriate optional configuration.

Does this ECG machine have a rechargeable battery?

Yes. The Cardiart 9108D uses a rechargeable lithium-ion battery for suitable portable recording workflows.

Does the BPL Cardiart 9108D support Wi-Fi?

Wi-Fi is an optional feature. Therefore, confirm its inclusion when selecting the machine configuration.

Can the ECG machine connect with hospital record systems?

Optional PC interface software can support integration with compatible electronic medical record and other clinical information systems. Confirm software requirements before purchase.

Important Clinical and Equipment Safety Information

Only trained healthcare staff should operate this ECG machine. First, inspect the leads, electrodes and power connection. Also, follow the manufacturer's patient safety and recording instructions. Computer-generated ECG interpretation supports clinical assessment but does not provide a final diagnosis on its own. Always refer ECG findings to a qualified healthcare professional.
