CMS6000 5 Para ICU CCU Vital Signs ECG,NIBP,SPO2,PR,TEMP 8Inch TFT color LCD

CMS6000 – Versatile 5 Para ICU CCU Monitor for Comprehensive Patient Care

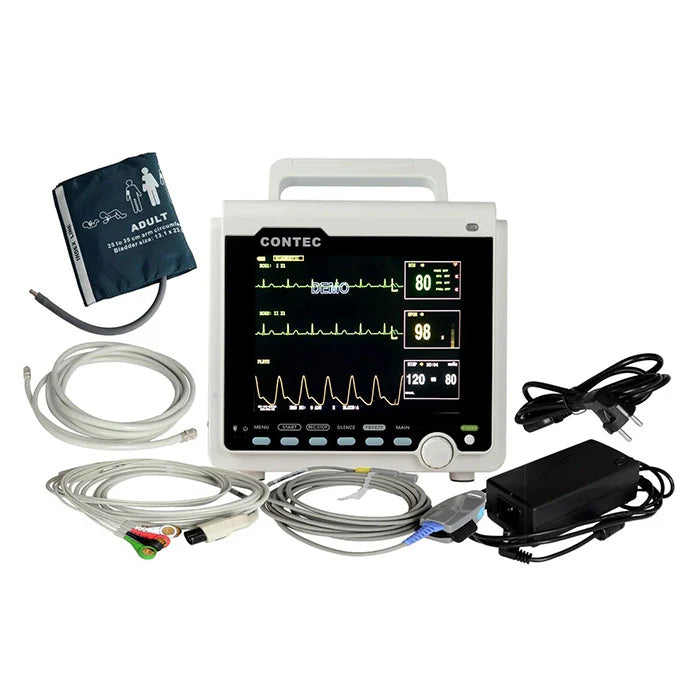

The CMS6000 is a highly versatile 5-parameter ICU/CCU monitor designed for adult, pediatric, and neonatal patients. It features an 8-inch TFT color LCD for real-time data display and supports up to 8-channel waveform monitoring, making it perfect for comprehensive patient monitoring in critical care settings.

This monitor is network-ready, allowing seamless integration with CONTEC central monitoring systems to provide real-time patient data across multiple locations.

Prepaid or Partial COD options are available for this product. Please call or WhatsApp us at +91 8586-012345 for more details.

Key Features:

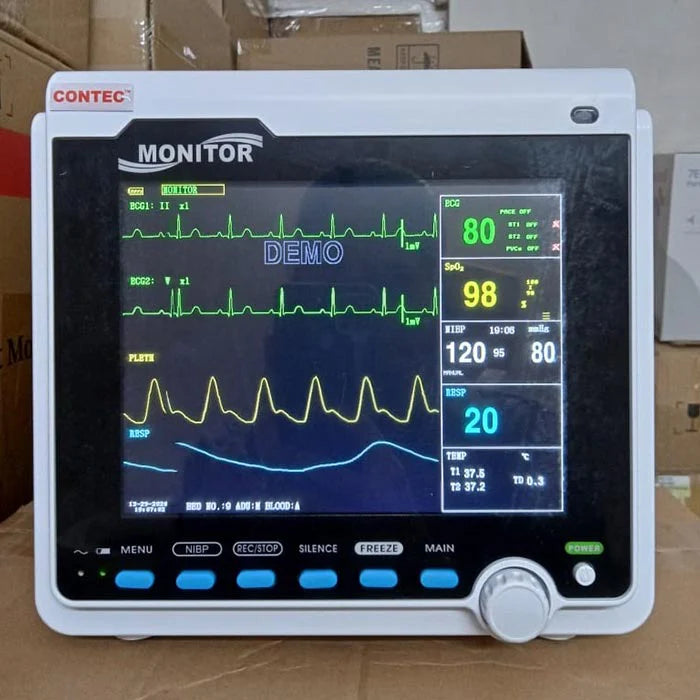

• 8.4-inch TFT color LCD display for clear, real-time monitoring
• Up to 8-channel waveform display of all parameters simultaneously
• Suitable for adult, pediatric, and neonatal patients
• Monitors ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP
• Built-in replaceable battery for patient mobility
• Audible and visual alarms with adjustable alarm ranges
• Networkable with CONTEC central monitoring system
• Powerful data management and storage capacity

Technical Specifications:

ECG (Electrocardiogram)

• Lead Type: 5-lead (RA, LA, RL, LL, V)
• Sweep Speed: 12.5mm/s, 25mm/s, 50mm/s
• Accuracy: ± bpm or ±%, whichever is greater
• Protection: Withstands 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation
• S-T Detection & Arrhythmia Analysis: Yes
• Alarm: Audible and visual, with recallable alarm events

NIBP (Non-Invasive Blood Pressure)

• Method: Oscillometry
• Operation Modes: Manual / Automatic / STAT
• Measurement Units: mmHg/KPa selectable
• Measurement Types: Systolic, Diastolic, Mean
• Over-pressure Protection: Yes

SpO2 (Oxygen Saturation)

• Measurement Range: 0% - 100%
• Accuracy: ±2% (70~100%), Unspecified below 70%
• Alarm Range: 0 - 100%

Quick Tips for Best Use:

• Ensure proper lead placement for accurate ECG readings.
• Check battery levels regularly to ensure continuous monitoring.
• Adjust alarm settings according to patient condition for timely alerts.
• Store the monitor in a cool, dry place for optimal performance.
• Regularly back up patient data to avoid data loss.
