Eclipse 5 Portable Oxygen Concentrator | Dual Flow
Eclipse 5 Portable Oxygen Concentrator | Dual Flow
In stock
- Free shipping over ₹500
Couldn't load pickup availability
Share this product

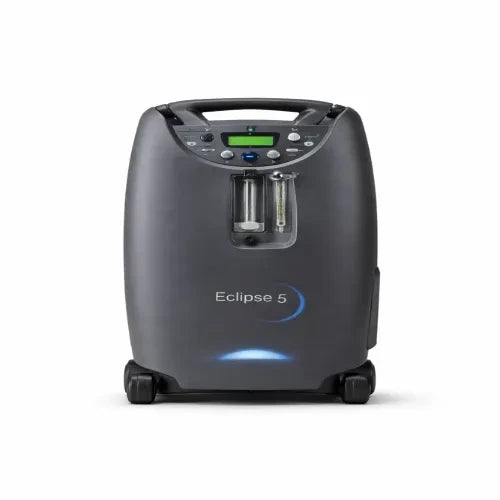

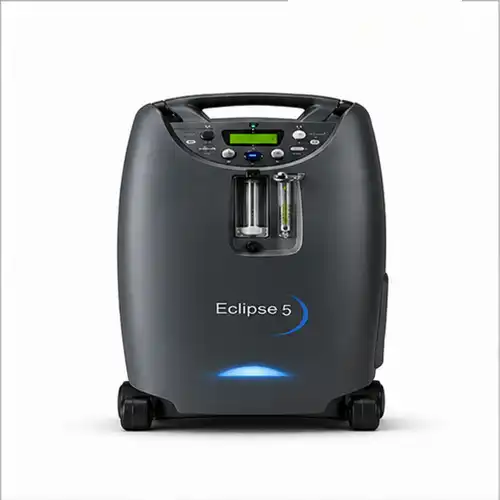

Eclipse 5 Portable Oxygen Concentrator with 3 LPM Continuous & Pulse 9
The Eclipse 5 Portable Oxygen Concentrator is designed for people who need prescribed oxygen support at home, during travel and while completing daily activities. This oxygen concentrator provides both continuous flow and pulse dose delivery, so it can support more oxygen prescriptions than many pulse-only portable units.
The device offers continuous flow from 0.5 to 3 LPM and pulse settings from 1 to 9, with doses from 16 to 192 mL. In addition, its rechargeable battery, AC supply and vehicle DC power support flexible use in different locations.
The Eclipse 5 is a transportable unit rather than a small wearable concentrator. However, its wheeled cart makes movement easier. Simple buttons, a clear display and audible and visual alarms also support routine use under medical guidance.
Key Features
- Dual Flow Delivery: Supports continuous flow and pulse dose oxygen modes.
- 3 LPM Continuous Flow: Provides adjustable output from 0.5 to 3 LPM.
- Pulse Settings 1–9: Delivers pulse doses from 16 to 192 mL.
- Flexible Power Options: Operates on AC power, vehicle DC power or battery.
- FAA Travel Support: Designed to meet applicable FAA requirements for portable oxygen concentrators.
- Safety Alarm System: Gives alerts for low battery, power loss, low oxygen output and faults.
- Wheeled Transport: Uses a removable cart and telescoping handle for easier movement.

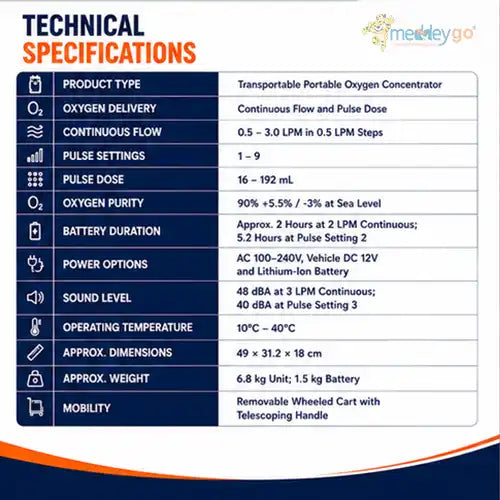

Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Transportable Portable Oxygen Concentrator |
| Oxygen Delivery | Continuous Flow and Pulse Dose |
| Continuous Flow | 0.5–3.0 LPM in 0.5 LPM Steps |
| Pulse Settings | 1–9 |
| Pulse Dose | 16–192 mL |
| Oxygen Purity | 90% +5.5% / -3% at Sea Level |
| Battery Duration | Approx. 2 Hours at 2 LPM Continuous; 5.2 Hours at Pulse Setting 2 |
| Power Options | AC 100–240V, Vehicle DC 12V and Lithium-Ion Battery |
| Sound Level | 48 dBA at 3 LPM Continuous; 40 dBA at Pulse Setting 3 |
| Operating Temperature | 10°C–40°C |
| Approx. Dimensions | 49 × 31.2 × 18 cm |
| Approx. Weight | 6.8 kg Unit; 1.5 kg Battery |
| Mobility | Removable Wheeled Cart with Telescoping Handle |
Benefits
- Provides continuous and pulse oxygen from one device.
- Therefore, it can support home and travel use when prescribed.
- High pulse output meets needs beyond basic pulse settings.
- Also, battery and vehicle power support time away from home.
- Moreover, the cart reduces the need to carry the full device weight.
Suitable For
- Patients prescribed continuous or pulse dose oxygen
- Home oxygen therapy users
- People who need oxygen during travel or daily movement
- Hospitals, respiratory clinics and home-care providers
Applications
- Prescribed home oxygen therapy
- Portable oxygen support during travel
- Vehicle-based oxygen use with DC power
- Day and night oxygen support as medically advised
Why Choose the Eclipse 5 Oxygen Concentrator?
The Eclipse 5 combines continuous flow up to 3 LPM with pulse settings up to 9. As a result, it offers more delivery choices than many compact pulse-only concentrators. It can also operate from AC, DC or battery power.
Although it is heavier than wearable models, the wheeled cart makes transport easier. Therefore, it suits buyers who value dual-flow performance over very low carrying weight.
Buying Guidance
Before buying, confirm the prescribed mode, setting and daily usage time with a doctor or respiratory therapist. Also, check battery needs, travel plans, vehicle power compatibility and local service support.
Usage Note: Use this oxygen concentrator only under medical prescription. It is not a life-support device. Keep a suitable backup oxygen source available for power failure, alarms or service needs.
FAQs
1. Does the Eclipse 5 provide continuous flow?
Yes. It provides adjustable continuous flow from 0.5 to 3 LPM.
2. What pulse settings are available?
It offers settings 1 to 9, with doses from 16 to 192 mL.
3. Can it operate in a car?
Yes. It can operate from a compatible 12V vehicle DC power source.
4. Is it suitable for air travel?
CAIRE states that it meets FAA guidelines. However, confirm current airline rules before travel.
5. Is the screen touch-enabled?
No. The device uses physical buttons with a display.
6. Can every oxygen patient use pulse mode?
No. A doctor or respiratory therapist must confirm whether pulse delivery is suitable.
