Electro Cautery Machine: Main Highlights
400W Pure Cut High-Frequency Output
Two-Electrode Mode Focused Surgical Energy
Vessel Sealing Three Sealing Modes
PPQM Monitoring Patient Plate Monitoring

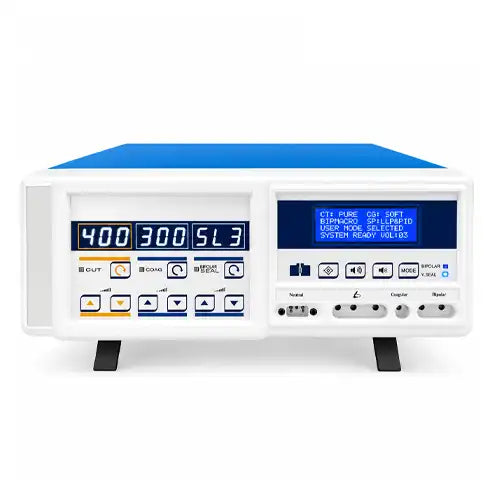

VX-400 Electro Cautery Machine for Surgery
The electro cautery machine VX-400 is made for use in hospital operation theatres. It uses high-frequency energy to cut tissue and help control bleeding. It also offers several energy modes for different surgical tasks.
The machine gives up to 400W of pure cutting power. Surgeons can choose from Pure Cut and Blend modes. Also, they can select the required setting for tissue coagulation.
The VX-400 supports a two-electrode mode with suitable surgical forceps. In this mode, current flows between the two instrument tips. The machine also has three vessel sealing modes for approved procedures.
In addition, the PPQM system helps check the patient return plate during suitable single-electrode surgery. This supports the team's safety checks.
The unit has a digital control panel and a compact body. It measures 350 × 350 × 130 mm and weighs 6.5 kg. So, staff can place it on a suitable OT trolley.
This electro cautery machine may suit general surgery, laparoscopy and gynecology units. However, only trained staff should use the device and its connected tools.
Key Features
-
400W Cutting Output: Supports suitable tissue cutting during surgery.
-
Pure and Blend Modes: Offers several settings for different cutting needs.
-
Coagulation Modes: Includes Soft, Dessicate, Force and Spray.
-
Two-Tip Forceps Mode: Works with suitable forceps for focused energy use.
-
Three Vessel Seal Modes: Offers Soft-Seal, Med-Seal and Rapid-Seal.
-
PPQM System: Helps monitor the patient return plate.
-
Digital Controls: Let staff view and adjust the output.
-
Compact Body: Suits a planned hospital OT setup.

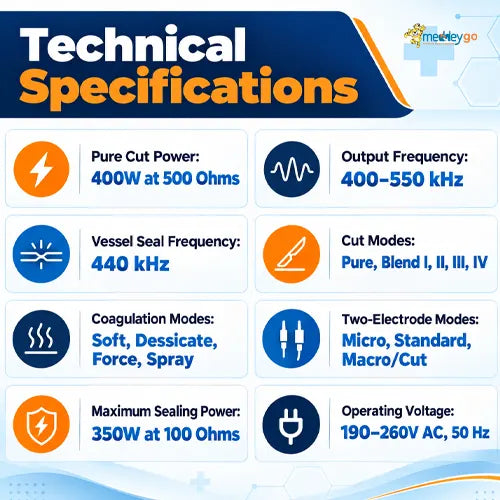

Technical Specifications
| Specification |
Details |
| Pure Cut Power |
400W at 500 Ohms |
| Output Frequency |
400–550 kHz |
| Vessel Seal Frequency |
440 kHz |
| Single-Electrode Cut Modes |
Pure, Blend I, II, III, IV |
| Coagulation Modes |
Soft, Dessicate, Force, Spray |
| Two-Electrode Modes |
Micro, Standard, Macro/Cut |
| Two-Electrode Maximum Power |
120W at 100 Ohms |
| Vessel Sealing Modes |
Soft-Seal, Med-Seal, Rapid-Seal |
| Maximum Sealing Power |
350W at 100 Ohms (Rapid-Seal) |
| Patient Plate Monitoring |
PPQM System |
| PPQM Frequency |
85 kHz ± 10 kHz |
| PPQM Measuring Current |
Less Than 10 µA |
| Operating Voltage |
190–260V AC, 50 Hz |
| Optional Voltage |
90–120V AC, 60 Hz |
| Dimensions |
350 × 350 × 130 mm |
| Net Weight |
6.5 kg |
| Included Accessories |
Confirm |
| Warranty |
Confirm |
Surgical Energy Modes
Pure Cut: Provides high-frequency energy for tissue cutting.
Blend Modes: Offer a mix of cutting and tissue drying effects.
Coagulation: Supports bleeding control with Soft, Dessicate, Force and Spray settings.
Two-Tip Forceps Mode: Sends energy between the tips of a suitable surgical tool. It includes Micro, Standard and Macro/Cut modes.
Vessel Sealing: Provides three settings for sealing suitable blood vessels with approved tools.
Each mode has its own output range. So, surgeons must choose the setting that suits the tissue and task.
Benefits for Surgical Teams
First, the VX-400 offers several cutting and coagulation modes in one unit. This helps surgeons choose a suitable energy setting.
Also, the two-tip mode supports focused work with compatible forceps. The vessel seal modes add more options for selected surgical tasks.
In addition, the PPQM system helps staff check the patient return plate. However, it does not replace routine safety checks.
The digital panel is easy to view. Also, the compact body helps staff plan space on an OT trolley.

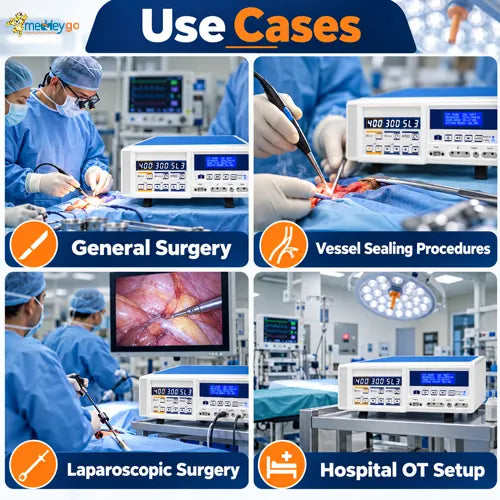

Clinical Applications
General Surgery
For tissue cutting and bleeding control.
Laparoscopic Surgery
For compatible surgical energy tools.
Gynecology
For selected surgical procedures.
Urology and ENT
For approved cutting and coagulation tasks.
Basic Setup and Care
- First, place the machine on a stable OT trolley.
- Next, check the power cable and machine condition.
- Connect the correct surgical tools.
- Check the patient return plate when required.
- Then select the planned mode and power setting.
- Watch the machine and patient during use.
- After use, switch off and clean the unit as directed.
Who Should Buy the VX-400 Electro Cautery Machine?
This electro cautery machine may suit hospitals, surgical centres and operation theatres that need several energy modes.
Also, it may suit teams that use vessel sealing in selected procedures. Before buying, check the tools, power supply and service terms.
Hospital Buying Checklist
-
Cut Power: Check the 400W pure cut output.
-
Energy Modes: Review the available cut, coagulation and forceps settings.
-
Vessel Sealing: Confirm the approved sealing tools.
-
Safety: Check PPQM and the alarm system.
-
Accessories: Confirm the footswitch, cables, plates and forceps.
-
Power: Select the correct voltage version.
-
Service: Ask about training, warranty and support.
Need Electro Cautery Machines for Your Hospital?
Get help with product details, available accessories and bulk orders. Our team can help you choose suitable surgical equipment for your hospital.
8586012345 (Mon–Sat 10:30 AM–6 PM)
Share your quantity, department and delivery location for a quote.
Frequently Asked Questions
What is an electro cautery machine used for?
It helps surgeons cut tissue and control bleeding. The VX-400 also supports vessel sealing with suitable tools.
What is the maximum cutting power?
The pure cut mode provides up to 400W at a rated load of 500 ohms.
Does the machine support two-tip surgical forceps?
Yes. It has Micro, Standard and Macro/Cut modes for compatible two-tip tools.
Can the VX-400 seal blood vessels?
Yes. The machine has Soft-Seal, Med-Seal and Rapid-Seal settings for approved tools.
What is the PPQM system?
It monitors the patient return plate during suitable surgery. However, staff must still check the plate and cables.
What is the output frequency?
The output range is 400–550 kHz. The vessel seal frequency is 440 kHz.
How much does the VX-400 weigh?
Its net weight is 6.5 kg.
Are sealing forceps included?
Please check the accessory list before buying. The included tools are not confirmed.
Important Surgical Safety Note
Only trained staff should use this surgical unit. Check the cables, plate and tools before use. Also, select the right mode and power level. High-frequency energy can cause burns or other harm when used incorrectly. Follow the user manual and OT safety rules.
