Infant Radiant Warmer Jumbo with Built in 450nm Phototherapy
Infant Radiant Warmer Jumbo with Built in 450nm Phototherapy
Regular price
Rs. 44,749
Sale price
Rs. 44,749
Regular price
Rs. 75,000
Inclusive of all taxes
.
In stock
Why Choose MeddeyGo.com ?
- Free shipping over ₹500
- 7 Day Returns
Couldn't load pickup availability
Share this product

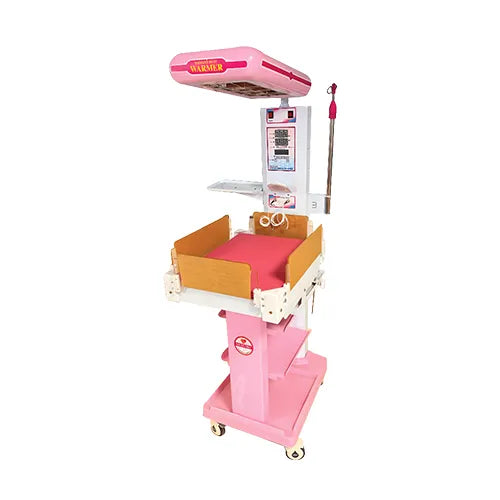

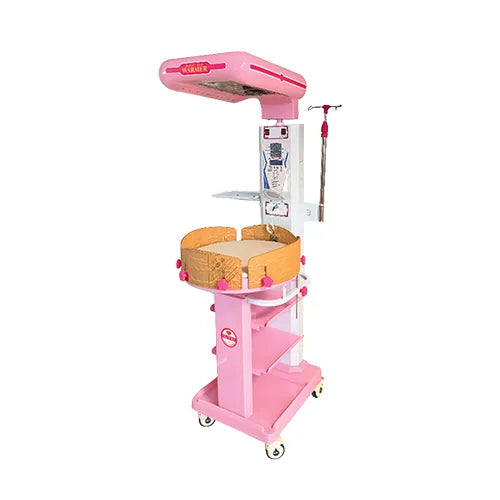

The Infant Radiant Warmer Jumbo with integrated 450nm phototherapy is an advanced neonatal care solution combining warming and jaundice treatment in a single unit. Available in both Single Sensor and Dual Sensor configurations, this radiant warmer is designed for intensive neonatal support in hospitals and NICUs. Its microprocessor-based control, high-sensitivity sensors, and ergonomic design ensure maximum safety, precision, and comfort for newborns.
Key Features
- Built-in Phototherapy – Integrated blue light phototherapy system (450nm wavelength) for jaundice treatment, eliminating the need for separate equipment.
-
Sensor Configurations:
- Single Sensor Model – Monitors and controls skin temperature only.
- Dual Sensor Model – Provides simultaneous skin and air temperature regulation for enhanced accuracy.
- Microprocessor-Based Control – Enables skin/manual (single sensor) or skin/air (dual sensor) operation modes.
- Ceramic/Quartz Heater – 600W capacity for reliable radiant heating.
-
Temperature Ranges:
- Skin Setting: 32°C to 37°C
- Air Setting (Dual Sensor Only): 30°C to 40°C
- Display Range: 28°C to 40°C
- Alarm System – Audio/Visual alarms for power failure, high/low temperature, sensor failure, and optional heater failure.
- Upgar Timer – For routine neonatal scoring post-birth.
- Comfort Mattress – Optional pressure PU foam mattress supports neonatal posture and comfort.
- Stainless Steel IV Stand – Telescopic design for convenient use during treatment.
- Fiber Baby Tray – Lightweight, round-shaped tray ensures hygienic and practical use.
- Heater Cutoff – Adjustable from 0 to 100% in 10% increments for precision heat delivery.
- Mobility – Four 100mm PU sole wheels (two with brakes) ensure safe movement and placement.
How to Use
- Connect the radiant warmer to a power source in a clinical setup.
- Select the appropriate mode: single or dual sensor, depending on your unit.
- Adjust the temperature via control panel – skin and air if using the dual sensor model.
- Place the baby on the PU foam mattress and attach the probe correctly.
- Enable the built-in phototherapy function if required for jaundice treatment.
- Monitor vitals and temperature on the display and respond to alarms if triggered.
- After use, sanitize the tray and turn off the device safely.
Technical Specifications
| Parameter | Single Sensor | Dual Sensor |
|---|---|---|
| Control Type | Microprocessor-based Skin & Manual | Microprocessor-based Skin & Air |
| Heater Type | Ceramic/Quartz 600W | |
| Skin Temp Setting Range | 32°C to 37°C | |
| Air Temp Setting Range | – | 30°C to 40°C |
| Display Temp Range | 28°C to 40°C | |
| Alarms | Power Fail, Temp High/Low, Sensor Fail, Optional Heater Fail (All Audio/Visual) | |
| Phototherapy | Built-in 450nm Wavelength | |
| Mattress | Pressure PU Foam (Optional) | |
| Upgar Timer | Yes | |
| IV Stand | Telescopic Stainless Steel | |
| Temperature Probe | PT-100 | |
| Baby Tray | Round, Made of Fiber | |
| Heater Cutoff Method | 0 to 100% in 10% Intervals | |
| Wheels | 100mm PU Sole Wheels (2 with Brakes, 2 Plain) | |
Quick Tips
- Use built-in phototherapy to treat neonatal jaundice efficiently.
- For enhanced monitoring, opt for the dual sensor model with air and skin readings.
- Always check that alarms and probes are functioning before placing the baby.
- Sanitize the fiber tray and probe after each use.
Warnings & Safety Information
- Operate under trained medical supervision only.
- Do not use the phototherapy mode without eye protection for the neonate.
- Ensure proper probe contact with the infant’s skin to avoid false readings.
- Regularly test alarms to confirm operational safety.
