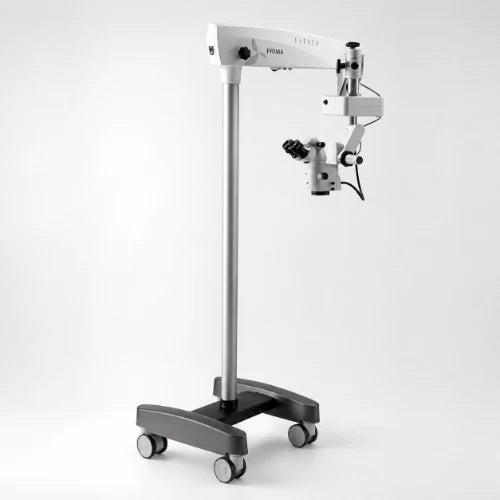

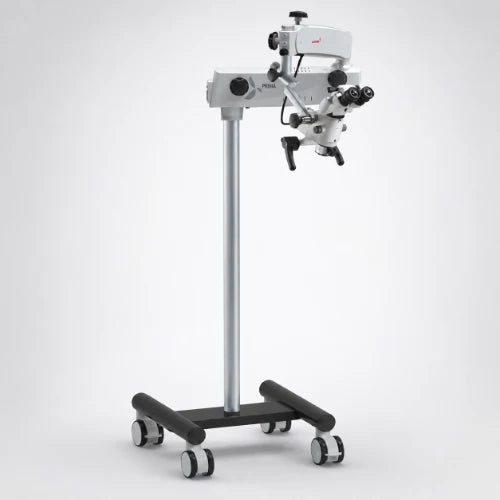

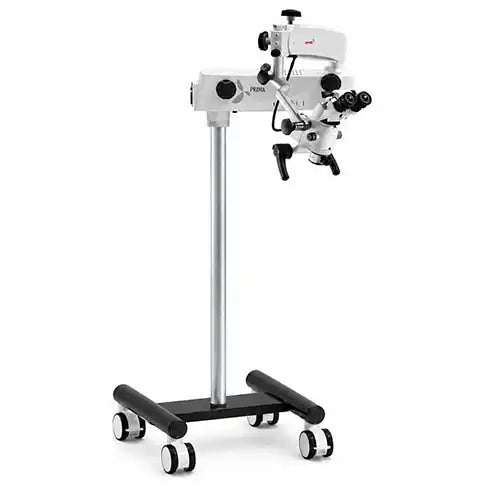

Labomed Prima OPH Operating Microscope 5 Step
Labomed Prima OPH Operating Microscope 5 Step
In stock
- Free shipping over ₹500
Couldn't load pickup availability
Share this product
The Labomed Prima OPH Operating Microscope 5 Step is a professional ophthalmic operating microscope designed to support high-quality visualization in hospital, ophthalmology clinic, eye care, surgical, and diagnostic environments. It is suitable for ophthalmologists, eye surgeons, OT teams, specialty eye hospitals, ophthalmic procedure rooms, and clinical institutions requiring stable magnification, bright illumination, and ergonomic microscope handling.
This operating microscope is designed with bright and even illumination, apochromatic optics, motorized focusing, 5-step magnification, and an ergonomic stand for precision ophthalmic workflow. Its optical design supports red reflex visualization, helping clinicians view an illuminated retina during ophthalmic examination and procedure support. The microscope is intended for professional use and should be operated by trained ophthalmologists or authorized healthcare professionals.
The Labomed Prima OPH Operating Microscope 5 Step is available in X-Y & Z Axis and Z Axis configurations as per selected model. Both configurations include a 45° inclined binocular head, WF 10X/16 mm eyepieces, apochromatic magnichanger, f=200 mm objective, 50W LED light source, green and blue filters, and 550 mm vertical arm movement. These features make it suitable for ophthalmic applications where clarity, positioning, and controlled focusing are essential.
Key Features
- Ophthalmic Operating Microscope: Designed for ophthalmology clinics, hospitals, surgical rooms, and specialist eye care environments.
- 5-Step Magnification: Apochromatic magnichanger supports 0.4X, 0.6X, 1.0X, 1.6X, and 2.5X magnification steps.
- Motorized Fine Focus: Fine focus range of 40 mm supports controlled focusing during ophthalmic procedures.
- Bright LED Illumination: 50W LED light source supports clear visualization for clinical and surgical viewing.
- Red Reflex Support: Optical design enables visualization of illuminated retina for ophthalmic examination support.
- 45° Inclined Binocular Head: Supports ergonomic viewing position for ophthalmic users during procedures.
- Green & Blue Built-In Filters: Filter options support enhanced viewing flexibility during ophthalmic workflow.
- Stable Non-Portable Design: Suitable for dedicated hospital and clinical installations where stable microscope positioning is required.

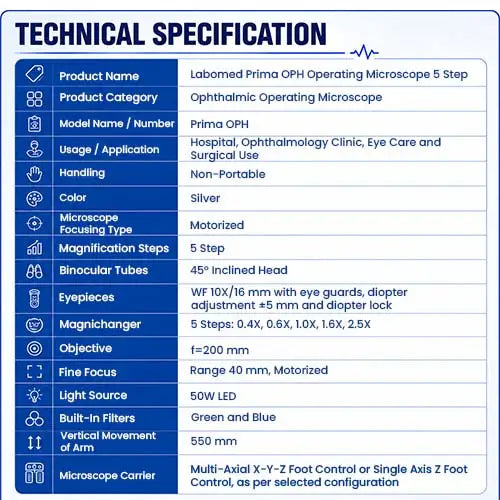

Technical Specifications
| Product Name | Labomed Prima OPH Operating Microscope 5 Step |
| Product Category | Ophthalmic Operating Microscope |
| Model Name / Number | Prima OPH |
| Usage / Application | Hospital, Ophthalmology Clinic, Eye Care and Surgical Use |
| Handling | Non-Portable |
| Color | Silver |
| Microscope Focusing Type | Motorized |
| Magnification Steps | 5 Step |
| Binocular Tubes | 45° Inclined Head |
| Eyepieces | WF 10X/16 mm with eye guards, diopter adjustment ±5 mm and diopter lock |
| Magnichanger | 5 Steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X |
| Objective | f=200 mm |
| Fine Focus | Range 40 mm, Motorized |
| Light Source | 50W LED |
| Built-In Filters | Green and Blue |
| Vertical Movement of Arm | 550 mm |
| Microscope Carrier | Multi-Axial X-Y-Z Foot Control or Single Axis Z Foot Control, as per selected configuration |
Product Benefits
- Supports ophthalmic visualization with bright and even illumination.
- Apochromatic optics help provide sharp images with clarity and contrast.
- 5-step magnification helps surgeons adjust viewing level according to clinical requirement.
- Motorized fine focus supports controlled and accurate focusing during procedures.
- Red reflex support helps with illuminated retina visualization during ophthalmic work.
- Ergonomic viewing angle supports user comfort during clinical and surgical use.
- Green and blue filters provide additional viewing support for ophthalmic workflows.
- Non-portable stable structure is suitable for dedicated hospital and eye-care setups.
Applications
The Labomed Prima OPH Operating Microscope 5 Step is suitable for ophthalmology hospitals, eye clinics, operation theatres, ophthalmic procedure rooms, teaching institutions, specialty eye care centres, and clinical examination areas. It supports ophthalmic surgery visualization, eye examination support, retina visualization, and procedure-based magnification workflow.
The microscope should be used by trained ophthalmologists, eye surgeons, OT teams, and authorized clinical users. Final clinical suitability depends on procedure type, selected configuration, installation space, and user preference.
How to Use
- Install the microscope in a suitable ophthalmic OT, procedure room, or eye care setup.
- Check the power supply, illumination system, arm movement, focus function, and binocular head before use.
- Adjust the binocular viewing angle and eyepieces for comfortable observation.
- Select the required magnification step according to the clinical area being viewed.
- Use motorized fine focus to achieve a clear and stable image.
- Position the microscope carefully according to patient placement and procedure requirement.
- Use built-in filters where clinically required for visualization support.
- After use, switch off the unit and clean external surfaces according to facility protocol.
Why Choose This Ophthalmic Operating Microscope?
The Labomed Prima OPH Operating Microscope 5 Step is suitable for ophthalmic teams that need a stable, precise, and ergonomic microscope for clinical and surgical visualization. Its combination of 5-step magnification, motorized fine focus, LED illumination, apochromatic optics, and red reflex support makes it practical for eye care environments.
For hospitals and ophthalmology clinics, this microscope supports detailed visualization, smooth focusing, and comfortable operation. Buyers should confirm selected axis configuration, installation requirements, objective preference, imaging needs, and clinical workflow requirements before purchase.
FAQs
1. What is the Labomed Prima OPH Operating Microscope 5 Step used for?
It is used for ophthalmic examination and operating microscope visualization in hospitals, eye clinics, and ophthalmic procedure rooms. It supports magnified viewing, red reflex visualization, and detailed clinical observation during eye care workflows.
2. What magnification does this microscope provide?
This microscope includes a 5-step magnichanger with 0.4X, 0.6X, 1.0X, 1.6X, and 2.5X settings. These steps help clinicians choose the required viewing level according to procedure and examination needs.
3. Does this microscope support motorized focusing?
Yes, the microscope is listed with motorized focusing and a 40 mm fine focus range. This helps users adjust focus smoothly and accurately during ophthalmic clinical or surgical visualization.
4. What light source is used in this microscope?
The microscope uses a 50W LED light source. This supports bright and even illumination for ophthalmic visualization and helps provide clear viewing during clinical and operating workflows.
5. Is this microscope portable?
No, the handling type is listed as non-portable. It is suitable for dedicated installation in hospitals, ophthalmology clinics, operation theatres, and specialist eye care environments where stable positioning is required.
