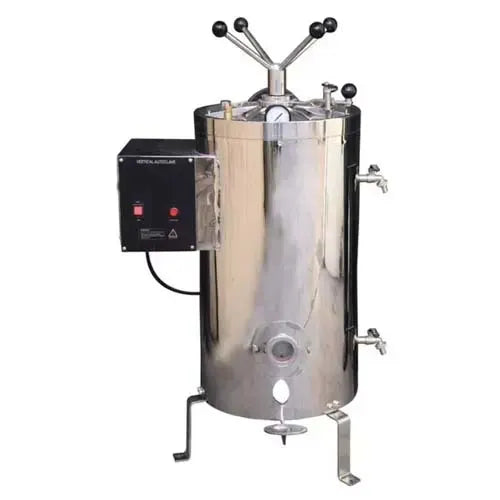

Autoclave Vertical Double Walled Radial Locking - SS 304 Delux

The Autoclave Vertical Double Walled Radial Locking - SS 304 Delux is a professional steam sterilization unit designed for hospitals, laboratories, clinics, diagnostic centres, research labs, and healthcare sterilization areas. It supports sterilization of compatible surgical instruments, laboratory tools, glassware, and medical equipment using steam under pressure.

This medical autoclave is constructed with SS 304 stainless steel, supporting durability, corrosion resistance, and hygiene-focused use in demanding clinical environments. The double-walled chamber helps improve heat retention and supports stable internal sterilization conditions. Its radial locking system provides secure chamber sealing during operation, helping maintain controlled pressure throughout the sterilization cycle.

With a temperature range of 121°C to 134°C and pressure range of 15-20 PSI, this vertical autoclave machine is suitable for routine sterilization needs in hospitals and labs. The vertical structure helps optimize floor space, making it practical for facilities where reliable sterilization performance and compact placement are both important.

Key Features

• SS 304 Stainless Steel Body: Durable and corrosion-resistant construction suitable for medical and laboratory sterilization environments.
• Double-Walled Chamber: Helps improve heat retention and supports stable sterilization conditions during operation.
• Radial Locking System: Provides secure sealing of the chamber during pressure-based steam sterilization cycles.
• Vertical Space-Saving Design: Compact vertical structure supports easier placement in clinics, labs, and sterilization rooms.
• Standard Sterilization Range: Operates within 121°C to 134°C temperature range for compatible sterilization workflows.
• Pressure Range Support: 15-20 PSI pressure range supports professional clinical and laboratory sterilization use.
• Two Capacity Options: Available in 78 L and 39 L variants to suit different workload and facility needs.
• Healthcare & Laboratory Suitable: Useful for hospitals, laboratories, clinics, diagnostic centres, and research facilities.

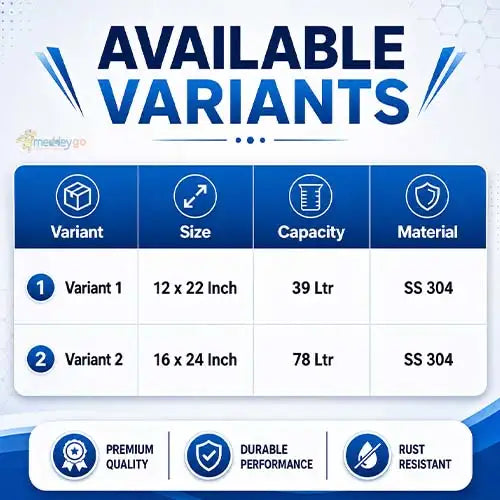

Available Variants

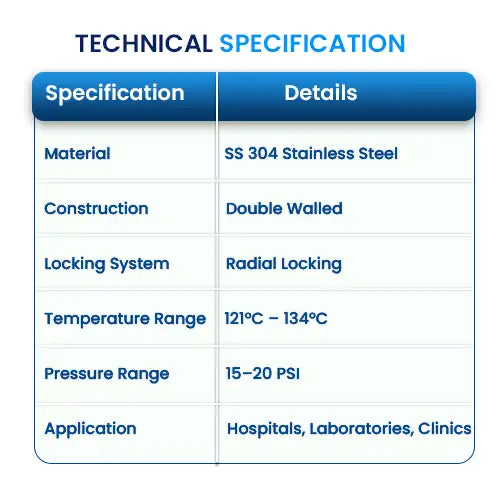

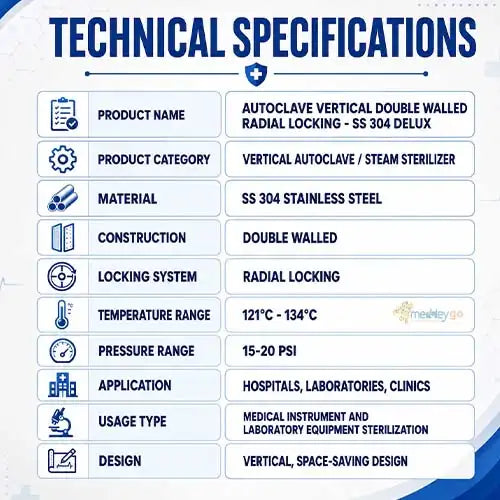

Technical Specifications

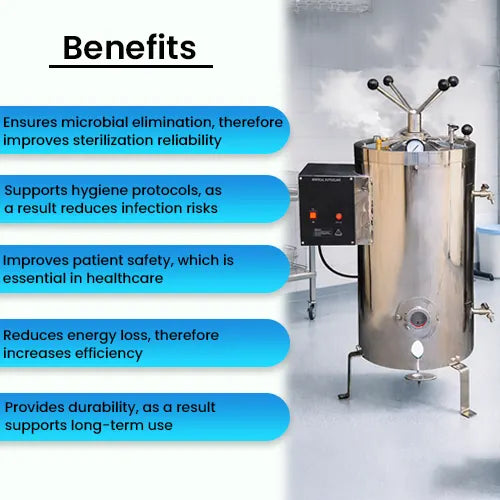

Product Benefits

• Supports sterilization workflow for compatible surgical instruments, laboratory tools, and medical equipment.
• SS 304 stainless steel construction supports long-term durability and corrosion resistance.
• Double-walled chamber helps maintain stable internal conditions during sterilization cycles.
• Radial locking system supports secure sealing and controlled pressure operation.
• Vertical design helps save space in compact laboratories, clinics, and sterilization rooms.
• Available in two capacity options to suit different clinical and laboratory workloads.
• Helps healthcare facilities maintain instrument processing and infection-control workflows.
• User-friendly design supports routine operation by trained healthcare and laboratory staff.

Applications

The Autoclave Vertical Double Walled Radial Locking - SS 304 Delux is suitable for hospitals, clinics, operation theatres, diagnostic centres, pathology labs, microbiology labs, research laboratories, medical colleges, nursing institutions, and healthcare sterilization rooms.

It can be used for sterilizing compatible surgical instruments, laboratory glassware, medical tools, microbiology equipment, and reusable healthcare items that are approved for steam and pressure sterilization. Users should always confirm material compatibility before loading items into the chamber.

How to Use

1. Install the autoclave in a clean, stable, and suitable sterilization area.
2. Check the chamber, radial locking system, pressure gauge, valves, water level, and power connection before use.
3. Load only compatible instruments or laboratory items without overfilling the chamber.
4. Close the lid properly and secure the radial locking mechanism before starting operation.
5. Select the required sterilization cycle according to temperature, pressure, load type, and facility protocol.
6. Monitor pressure and temperature during operation as per user manual guidance.
7. Allow steam and pressure to release safely before opening the chamber after cycle completion.
8. Remove sterilized items carefully and clean the autoclave according to maintenance instructions.

Why Choose This Vertical Autoclave?

This vertical autoclave is suitable for healthcare and laboratory teams that need a durable, compact, and professional sterilization solution. Its SS 304 stainless steel body, double-walled construction, radial locking system, and two capacity options make it useful for routine sterilization requirements in clinical and laboratory setups.

The unit supports controlled steam sterilization workflow while helping facilities maintain hygiene-focused instrument processing standards. Buyers should confirm chamber size, installation requirements, electrical setup, operating procedure, safety instructions, and maintenance needs before purchase.

FAQs

1. What is this medical autoclave used for?

This medical autoclave is used for steam sterilization of compatible surgical instruments, medical tools, laboratory glassware, and reusable equipment. It is suitable for hospitals, laboratories, clinics, diagnostic centres, and research facilities where sterilization workflow is required.

2. What material is used in this autoclave?

The autoclave is made from SS 304 stainless steel. This material supports durability, corrosion resistance, and hygiene-focused use in clinical and laboratory environments where regular sterilization operations are performed.

3. What is the benefit of radial locking?

The radial locking system helps secure the chamber lid during pressure-based sterilization. Proper locking supports controlled pressure maintenance and safer operation when the autoclave is used according to the user manual and facility protocol.

4. Which capacities are available?

This model is available in two capacity options: 16 x 24 inches with 78 Ltr capacity and 12 x 22 inches with 39 Ltr capacity. The right option should be selected based on workload, space, and sterilization needs.

5. Who should operate this autoclave?

This autoclave should be operated by trained healthcare staff, lab technicians, sterilization personnel, or authorized users. Since it works with steam, pressure, and heat, proper safety instructions and operating procedures must be followed.
