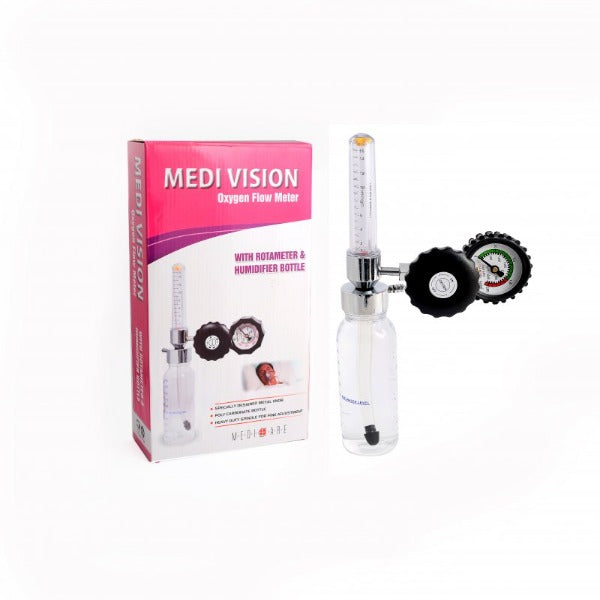

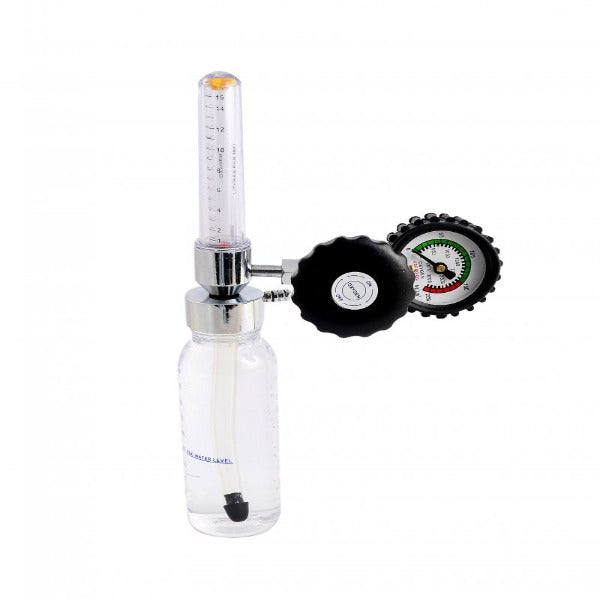

Medivision Oxygen Flow Meter

Oxygen Flow Meter with Humidifier Bottle – Accurate Oxygen Regulation for Patient Care

The most important element for a human being to function properly is oxygen. Yet, the flow of oxygen can become irregular at many times, causing severe malfunctioning of organs and leading to a fatal ending. A very helpful device to regulate the flow of oxygen in the human body is the Oxygen Flow Meter. It is a great device of use as it comes along with a humidifier bottle and its accuracy is commendable. Since the health of the patient directly depends on this machine, this device is specially made for providing proper accuracy.

Key Features

• Heavy duty spindle for fine adjustment
• Comes with a humidifier bottle
• Inlet connection: BSP 5/8 14RM
• Outlet connection: BSP 1/4 19RM
• Inlet gauge: 3000 lb/in2
• Unbreakable polycarbonate metering tube and cover
• Needle valve with 100um inlet filter
• Flow rate range: 0 to 15 litres per minute
• Flush flow: 60 litres per minute
• Flow reading based on the center of the ball
• Inlet pressure: 60 psi
• Bubble humidifier jar may be steam autoclaved and gas sterilized

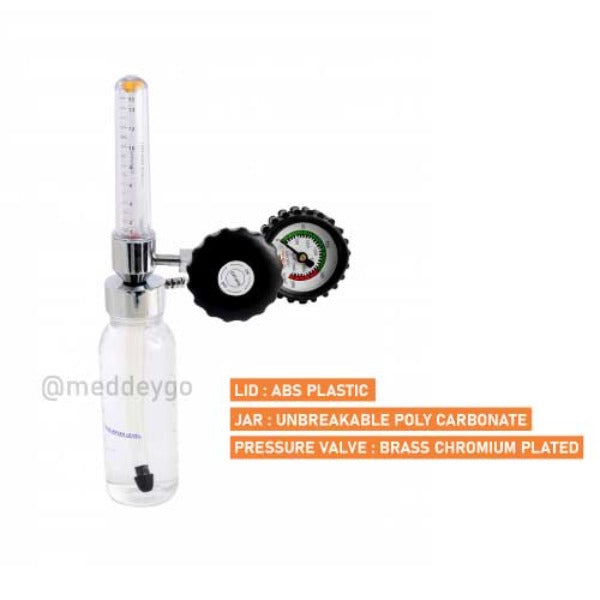

Materials of Construction

• Lid: ABS Plastic
• Jar: Unbreakable Polycarbonate
• Pressure Valve: Brass Chromium Plated
