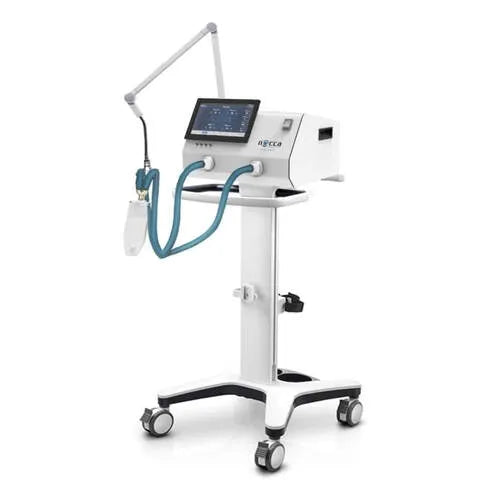

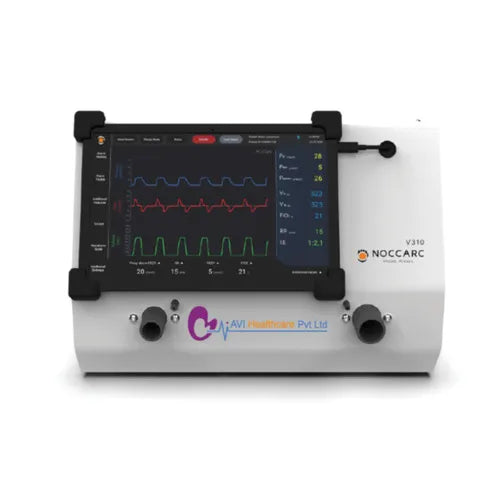

Noccarc Multi Mode ICU Ventilator

Noccarc Multi Mode ICU Ventilator

Payment Information

Prepaid or Partial COD Options are available for this product. Please call or WhatsApp us at 8586012345.

Modes Supported

PC CMV, PC AC, PC SIMV, VC CMV, VC AC, VC SIMV, PRVC CMV, PRVC AC, PRVC SIMV, PS CPAP (PSV), APRV, High Flow Nasal Cannula (HFNC mode)

Technical Specifications

• Peak Pressure: 60 cm H2O
• Peak Respiratory Rate: Up to 80 BPM
• Inspiratory Time: 0.2 – 5 seconds
• Tidal Volume: 50 – 2000 ml
• Peak Flow Rate: 280 SLPM (Internally restricted to 160 SLPM)
• PEEP: 0 – 40 cm H2O (increments of 1 cm H2O)
• Pressure Support: 0 – 50 cm H2O
• Inspiratory Hold: Yes
• Expiratory Hold: Yes
• I:E Ratio: 1:6 to 6:1
• Trigger Flow Sensitivity: 1 SLPM – 20 SLPM
• Volume Accuracy: 2-3% of the full scale between 10 LPM – 80 LPM
• Dimensions: 395 x 340 x 255 mm
• Weight: 10.1 kg
• Oxygen Input Pressure: 45 – 60 PSIG
• Battery Type: Lithium-Ion
• Leak Detection and Compensation: Yes
• Quick Ventilation Mode for Emergency Use: Yes
• Programmable SIGH: Yes
• Electronic FiO2 Manipulation: Yes
• FiO2 Range: 21% to 100%
• FiO2 Delivery Independent of Flowrate, PEEP, and Minute Volume: Yes

Key Features

• Versatile ventilation modes for comprehensive care
• Precise control of peak pressure, respiratory rate, and other parameters
• Compact and lightweight design for easy portability
• Quick ventilation mode for emergency situations
• Electronic FiO2 manipulation for advanced oxygen control
