Portable EEG Machine 24 and 32 Channel

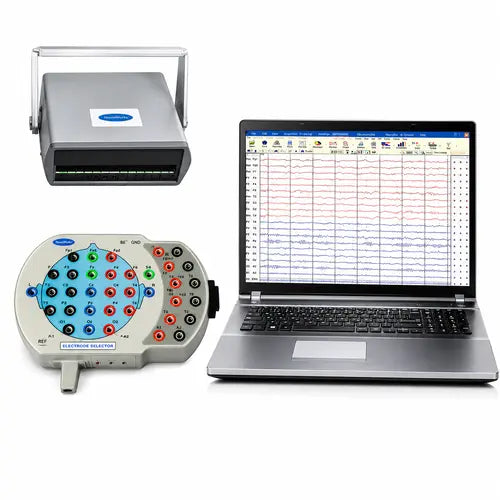

The Portable EEG Machine is designed for professional EEG recording and brain activity monitoring in hospitals, neurology clinics, diagnostic centres, sleep labs, medical colleges and neurophysiology departments. It is suitable for routine EEG recording, neurological assessment, epilepsy evaluation support and clinical EEG reporting.
This EEG system is available in 24 channel and 32 channel variants. It supports USB-powered operation, high-intensity white LED photic stimulation, automatic impedance measurement, digital filters and advanced EEG waveform review tools for professional diagnostic workflows.
The machine supports online and offline editing of events and comments, waveform reformatting of gain, filter and sweep speed, and advanced database management with search options. Optional configurations are available with video and SpO2 support, making it useful for advanced EEG monitoring setups.
Available Variants
| Variant | Details |
|---|---|
| Variant 1 | 24 Channel Portable EEG Machine |
| Variant 2 | 32 Channel Portable EEG Machine |
Key Features
- 24 and 32 Channel Options: Available in 24 channel and 32 channel variants.
- USB Powered System: Operates through PC USB power for convenient clinical setup.
- Portable Design: Compact and lightweight design supports easy movement between rooms.
- High-Intensity Photic Stimulation: Uses white LED photic stimulation for EEG activation procedures.
- Automatic Impedance Check: Built-in impedance measurement helps verify electrode contact.
- Digital Filters: High cut, low cut and notch filters help improve EEG waveform quality.
- Event and Comment Editing: Allows editing and marking of events and comments online or offline.
- Waveform Reformatting: Supports online and offline adjustment of gain, filter and sweep speed.
- Database Management: Advanced database tools help organise patient EEG records.
- Optional Video and SpO2: Selected models are available with video and SpO2 support.

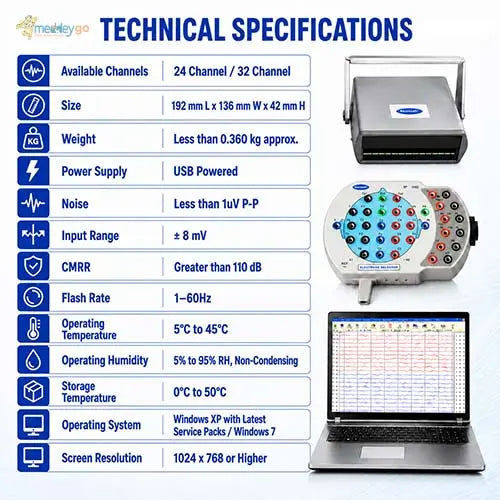

Technical Specifications
| Specification | Details |
|---|---|
| Available Channels | 24 Channel / 32 Channel |
| Size | 192 mm L x 136 mm W x 42 mm H |
| Weight | Less than 0.360 kg approx. |
| No. of Input Channels | 24 / 32 |
| No. of Display Channels | 24 / 32 |
| Photo Stimulator | High Intensity White LEDs |
| Power Supply | USB Powered |
| Frequency Band Range | 0.1 to 100Hz |
| Input Impedance | Greater than 10 MΩ |
| Noise | Less than 1uV P-P |
| Input Range | ± 8 mV |
| CMRR | Greater than 110 dB |
| Sampling | 1024 Hz at ADC, 256 Hz for Internal Storage |
| A/D Conversion | 24 Bit |
| Impedance Measurement | Automatic, Built-in |
| High Cut Filter | 0.5–100Hz Digital Filter |
| Low Cut Filter | 0.1–7Hz Digital Filter |
| Notch Filter | 50 / 60Hz Digital Filter |
| Time Resolution | 7.5, 15, 30, 60 mm/s |
| Flash Rate | 1–60Hz |
| Operating Temperature | 5°C to 45°C |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Storage Temperature | 0°C to 50°C |
| Operating System | Windows XP with Latest Service Packs / Windows 7 |
| Screen Resolution | 1024 x 768 or Higher |
Standard Accessories
| Accessory | Quantity |
|---|---|
| Respiration Transducer | 1 No. |
| Electrodes Placement Card | 1 No. |
| EEG Paste | 2 Jars |
| EEG Electrodes | 25 / 33 Nos. |
| ECG Electrodes | 2 Nos. |
| EMG Electrodes | 2 Nos. |
| Photic Flash | 1 No. |
| Photic Flash Flat Cable | 1 No. |
| USB Cable | 1 No. |
| Patient Ground Cable | 1 No. |
| Event Marker | 1 No. |
| User Manual / CD | 1 No. |
| Head Box | 1 No. |
Optional Accessories
- Camera
- Capture Card
- Audio Cable
- Signal Power Supply Cable
- EEG Trolley
- Photic Stand
Available Configurations (whatsapp 8586 012345 for pricing)
| Configuration | Details |
|---|---|
| EEG 24Ch | 24 Channel EEG USB Powered Machine |
| EEG 24Ch-V | 24 Channel EEG USB Powered Machine with Video |
| EEG 24Ch-S | 24 Channel EEG USB Powered Machine with SpO2 |
| EEG 24Ch-SV | 24 Channel EEG USB Powered Machine with SpO2 + Video |
| EEG 32Ch | 32 Channel EEG USB Powered Machine |
| EEG 32Ch-V | 32 Channel EEG USB Powered Machine with Video |
| EEG 32Ch-S | 32 Channel EEG USB Powered Machine with SpO2 |
| EEG 32Ch-SV | 32 Channel EEG USB Powered Machine with SpO2 + Video |
Benefits
- Supports professional EEG recording in neurology and diagnostic setups.
- 24 and 32 channel options allow facilities to choose according to workflow.
- USB-powered operation makes setup simple with compatible PC systems.
- High-resolution 24-bit A/D conversion supports quality signal acquisition.
- Built-in automatic impedance measurement supports electrode checking.
- Online and offline event marking helps improve EEG reporting workflow.
- Advanced database management supports organised patient record handling.
- Optional video and SpO2 configurations support advanced EEG monitoring needs.
Who Should Buy This?
- Neurology clinics
- Hospitals with EEG departments
- Diagnostic centres
- Neurophysiology labs
- Sleep study centres
- Medical colleges and teaching hospitals
- Epilepsy care centres
- Healthcare buyers looking for portable EEG equipment
Common Applications
- Routine EEG recording
- Neurology diagnostic support
- Epilepsy evaluation support
- Brain activity monitoring
- Sleep and neurophysiology workflow support
- Clinical EEG reporting
- Medical teaching and training use
- Optional video EEG and SpO2-supported monitoring
Why Choose This Portable EEG Machine?
This portable EEG machine is a useful option for healthcare facilities that need 24 channel or 32 channel EEG recording with USB-powered operation. Its compact size, photic stimulation support, database management tools and online/offline editing features make it practical for clinical EEG workflows.
With automatic impedance measurement, digital filters, high CMRR, photic stimulation support and optional video / SpO2 configurations, it is suitable for hospitals, diagnostic centres and neurology departments that need flexible EEG recording options.
Buying Guidance
Before buying, confirm whether your facility requires 24 channel or 32 channel EEG. Also check if you need optional video, SpO2, camera, capture card, trolley, photic stand or other accessories. Confirm PC compatibility, screen resolution, installation support and training before purchase.
Clinical Use Note: This EEG machine should be used by trained healthcare professionals or EEG technicians. EEG findings should be interpreted by qualified neurologists or authorised medical professionals.
FAQs
1. What is this portable EEG machine used for?
It is used for EEG recording and brain activity monitoring in hospitals, neurology clinics and diagnostic centres.
2. Which channel options are available?
This machine is available in 24 channel and 32 channel variants.
3. Is this EEG machine USB powered?
Yes, it operates with PC USB power.
4. Does it support photic stimulation?
Yes, it includes a high-intensity white LED photo stimulator.
5. Does it support video EEG?
Video EEG is available in selected configurations with video support.
6. Is SpO2 available?
Integrated SpO2 is available as an optional configuration.
7. What operating system is required?
The system supports Windows XP with latest service packs installed or Windows 7, with 1024 x 768 or higher screen resolution.
