Slim LED X-Ray View Box 25mm Triple Film with Dimmer & Auto Sensor

Slim LED X-Ray View Box 25mm Triple Film with Dimmer & Sensor

The Slim LED X-Ray View Box 25 mm Triple Film is designed for hospitals, clinics and diagnostic centres that need clear and organised X-ray film viewing. This LED X-ray view box can hold up to three films at the same time. Therefore, doctors and technicians can compare multiple images more easily during routine review.

The unit has a slim 25 mm profile, which helps save wall or desk space. In addition, it provides brightness above 8000 Lux with light uniformity above 90%. As a result, films can be viewed with even illumination across the display area.

Moreover, each section includes its own dimmer control and film sensor. The sensor activates the light when a film is inserted, while the dimmer lets users adjust brightness according to viewing needs. Therefore, the system supports convenient day-to-day use.

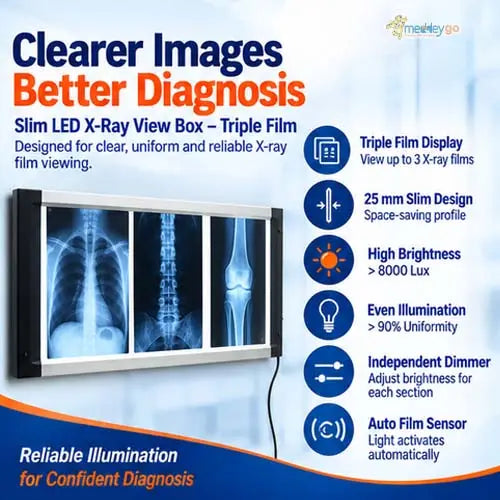

Key Features

• Triple Film Display: Supports viewing of up to three X-ray films at one time.
• 25 mm Slim Design: Compact profile helps save space in diagnostic areas.
• Brightness Above 8000 Lux: Provides strong light for routine X-ray film viewing.
• Light Uniformity Above 90%: Helps maintain even illumination across the viewing surface.
• Independent Dimmer Control: Allows brightness adjustment for each section.
• Auto Film Sensor: Activates the light when a film is inserted.
• Long LED Life: Supplied LED life is more than 100,000 hours.
• Wide Voltage Input: Works on AC 100–270V.
• Flexible Installation: Suitable for wall mounting or tabletop use.

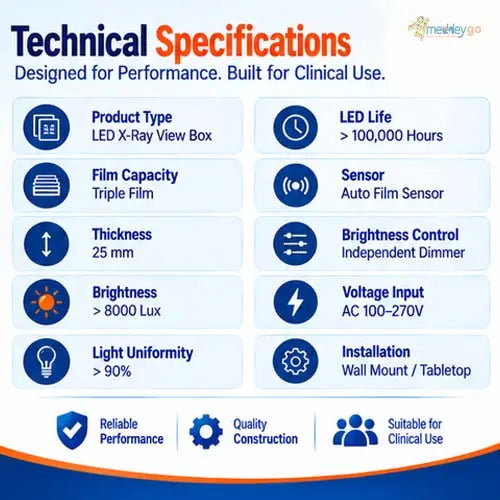

Technical Specifications

Benefits

First, the triple-film layout helps users compare several X-ray images without changing films repeatedly. Next, the high brightness level supports clear viewing during routine diagnostic work. Also, the slim design reduces the space required for installation. In addition, independent dimmers give users more control over each viewing section.

Therefore, the view box can support a smoother workflow in busy radiology and clinical areas. Moreover, the automatic film sensor reduces repeated manual switching. Finally, the long LED life can help reduce frequent lamp replacement.

Applications

• Hospitals
• Diagnostic centres
• Radiology departments
• Clinics
• Dental clinics
• Medical colleges and training centres
• Orthopaedic and surgical departments

How to Use

First, place the unit securely on a suitable wall or tabletop according to the selected installation method. Next, connect it to the recommended power supply. Insert the X-ray film into the required viewing section. Then, use the independent dimmer to set a suitable brightness level. After review, remove the film and allow the sensor to switch the section off as designed.

Why Choose This LED X-Ray View Box?

This LED X-ray view box combines triple-film capacity, high brightness and a slim 25 mm design in one practical unit. Therefore, it is useful for facilities that need to review multiple films while keeping the installation compact.

In addition, the independent sensor and dimmer system gives each section separate control. As a result, users can adjust the viewing area according to the number of films and required brightness.

Buying Guidance

Before ordering, confirm the available wall or desk space and whether triple-film capacity is required. Also, check the AC 100–270V power supply and preferred installation method. In addition, confirm final dimensions, mounting accessories and warranty details before purchase.

Usage Note: Keep the display surface clean and dry. Also, switch off and disconnect the unit before routine cleaning or maintenance.

Frequently Asked Questions

What is the film capacity of this LED X-ray view box?
It can display up to three X-ray films at the same time.

How bright is the viewing surface?
The supplied brightness is more than 8000 Lux.

Does each section have separate brightness control?
Yes. Each viewing section has an independent dimmer.

Does the light turn on automatically?
Yes. The supplied design includes an automatic film sensor.

What is the thickness of the unit?
The view box has a slim profile of approximately 25 mm.

Can it be wall mounted?
Yes. It can be wall mounted or used on a suitable tabletop.

What voltage does it support?
The supplied voltage range is AC 100–270V.
