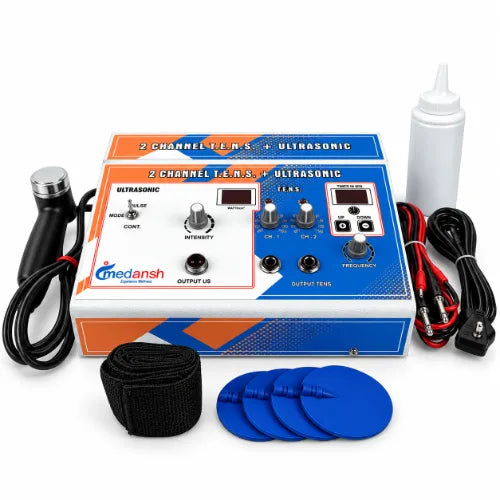

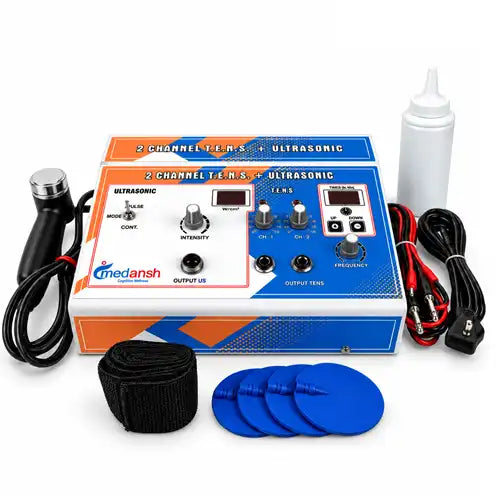

Medansh Ultrasonic TENS Machine with 2 Channel & 1MHz Ultrasound

Medansh Ultrasonic TENS Machine with 2 Channel & 1MHz Ultrasound

The ultrasonic TENS machine gives two therapy options in one unit. It has 2-channel TENS and 1 MHz ultrasound. This makes it useful for clinics, hospitals and rehab rooms.

The TENS section has two separate channels. It works with four rubber pads. The TENS rate can be set up to 250 Hz. This gives the therapist more control during a session.

The ultrasound section works at 1 MHz. It comes with a separate ultrasound head. A gel bottle is also supplied. So, the unit is ready for suitable clinic use.

The timer can run for up to 99 minutes. This helps the user set a clear session time. The machine also has an LED display. The main controls are placed on the front panel.

The unit weighs about 1.7 kg. Its size is about 24 × 27 × 10 cm. It runs on 220 V AC. The selected model also comes with a 2-year warranty.

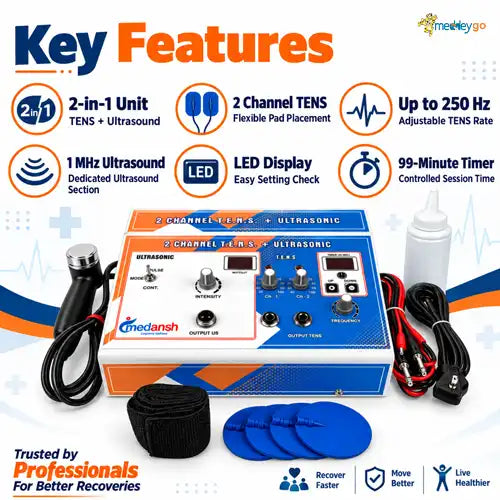

Ultrasonic TENS Machine Key Features

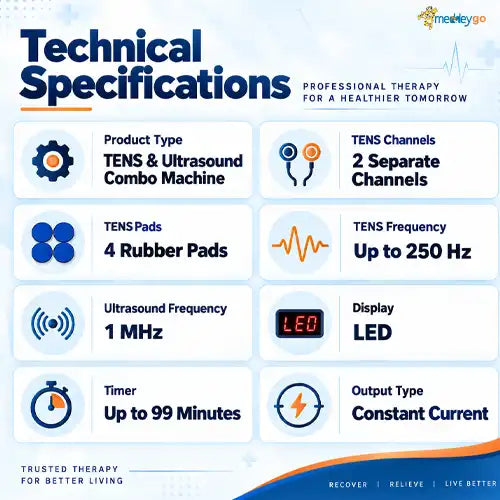

Technical Specifications

Specification	Details
Product Type	TENS & Ultrasound Combo Machine
TENS Channels	2 Separate Channels
TENS Pads	4 Rubber Pads
TENS Frequency	Up to 250 Hz
Ultrasound Frequency	1 MHz
Display	LED
Timer	Up to 99 Minutes
Output Type	Constant Current
Power Supply	220 V AC
Approx. Size	24 × 27 × 10 cm
Approx. Weight	1.7 kg
Warranty	2 Years

What Comes in the Box?

Benefits

This ultrasonic TENS machine can save space. It puts two therapy options in one unit. So, a clinic can manage both functions from one system.

• Two TENS channels give more pad placement options.
• The TENS rate can be adjusted for the planned session.
• The 1 MHz section adds ultrasound therapy use.
• The timer helps the user track session time.
• The compact body takes less treatment-room space.
• The front controls are easy to reach.

Where Can It Be Used?

Basic Use Guide

1. Place the unit on a flat and dry surface.
2. Connect the needed parts before use.
3. For TENS, connect the lead wires and pads.
4. Place the pads as advised by the therapist.
5. Set the required rate, time and intensity.
6. For ultrasound, apply the right gel first.
7. Then use the 1 MHz head as advised.
8. Check patient comfort during the session.
9. After use, switch off the unit.
10. Clean reusable parts as directed.

Who Should Consider This Machine?

This ultrasonic TENS machine can suit physiotherapists, rehab teams, hospitals and orthopaedic clinics. It is useful for buyers who need TENS and 1 MHz ultrasound in one compact unit.

Need Help Choosing Physiotherapy Equipment?

Contact MeddeyGo for product details, stock and bulk needs.

Important Note: This unit is made for professional therapy use. A trained person should set the treatment values. They should also choose pad placement and session time. Follow the product manual before use. Check all relevant safety rules and contraindications.

Frequently Asked Questions

1. What is an ultrasonic TENS machine?

It is one unit with TENS and ultrasound therapy modes. This model has 2-channel TENS and 1 MHz ultrasound.

2. How many TENS channels does this model have?

It has 2 separate TENS channels. It also comes with four rubber pads.

3. What is the ultrasound frequency?

The ultrasound section works at 1 MHz.

4. What is the maximum TENS frequency?

The TENS frequency can be set up to 250 Hz.

5. Does the machine have a timer?

Yes. The timer can be set for up to 99 minutes.

6. Where can this machine be used?

It can suit clinics, hospitals and rehab centres. It is designed for trained and supervised use.

7. What warranty does this model have?

The selected model comes with a 2-year warranty.
