Vein Finder Machine Infrared Vein Showing Device for Clinical Use

Vein Finder Machine Infrared Vein Showing Device for Clinical Use

Rs. 112,699
Rs. 112,699 Rs. 138,000
Inclusive of all taxes .

In stock

Why Choose MeddeyGo.com ?
Happy Customers
Trusted by over 1 Lakh speciality clinics and hospitals for quality
Medical Supplies
A to Z of hospital setup — all in one place, only at MeddeyGo
Doorstep Delivery
From surgical blade to hospital bed — across 22,000+ pincodes nationwide
MedTalks
Empowering communities through expert-led awareness initiatives
  • Free shipping over ₹500

Get Bulk Quote Now

The fields marked * are required.

Infrared Vein Showing Device for Accurate Vein Visualization

🔴
Near Infrared
Vein Visualization Technology
📱
OLED Display
Clear Information Display
🎯
High Accuracy
Projection Accuracy <0.3 mm
🔋
Rechargeable Battery
Up to 4.5 Hours Working

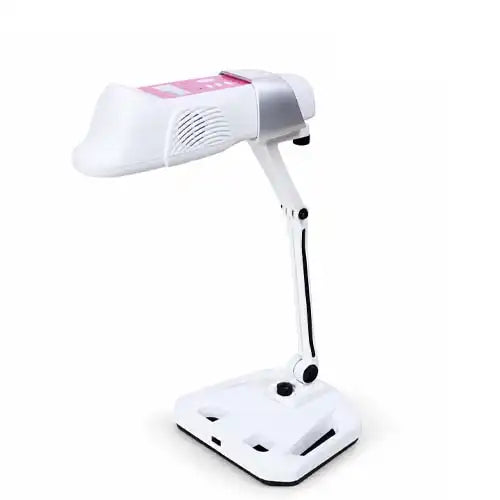

Vein Finder Machine for Professional Vein Visualization

The vein finder machine is designed to help healthcare professionals visualize veins using near infrared technology. It projects vein images onto the skin surface, which can support professionals during vein location procedures.

The device uses a near infrared light source with a peak wavelength of 940 ±15 nm. Therefore, it helps create a clearer view of vein patterns under suitable clinical conditions.

The system includes projection and OLED display modes. In addition, the device provides projection accuracy of less than 0.3 mm and image resolution of 640 × 480 pixels.

The compact design includes angle flexibility and handle support. As a result, professionals can adjust the device position according to their working requirements. The rechargeable battery provides approximately 4.5 hours working time after charging.

This infrared vein showing device can support hospitals, clinics and healthcare facilities where vein visualization assistance is required. However, healthcare professionals should always follow their clinical judgement and standard procedures during patient care.

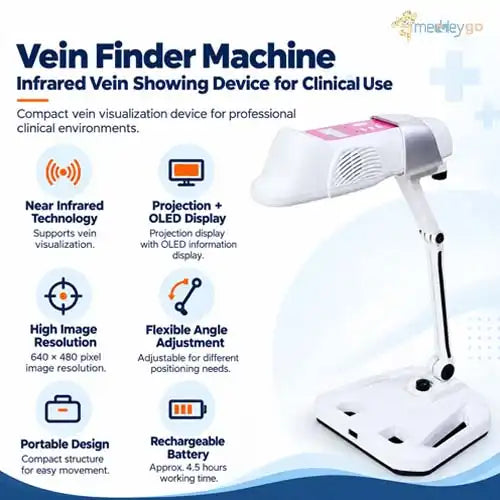

Vein Finder Machine Key Features

Near Infrared Technology

Uses near infrared light to support vein visualization.

Projection + OLED Display

Provides projection display along with OLED information display.

High Image Resolution

Provides 640 × 480 pixel image resolution.

Flexible Angle Adjustment

Allows adjustment at different angles according to requirements.

Portable Design

Compact structure supports convenient movement between locations.

Rechargeable Battery

Provides approximately 4.5 hours working time.

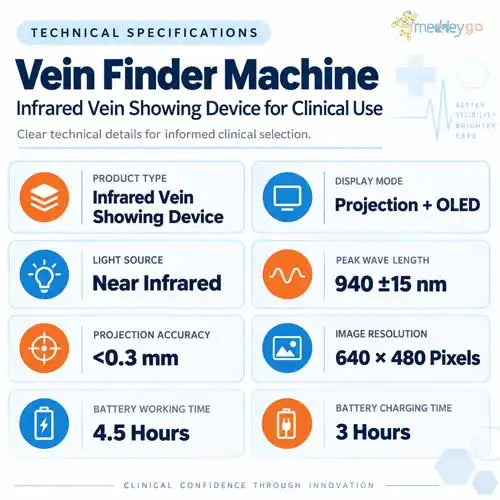

Technical Specifications

Specification Details
Product Type Infrared Vein Showing Device
Display Mode Projection + OLED
Light Source Near Infrared
Peak Wave Length 940 ±15 nm
Projection Accuracy <0.3 mm
Image Resolution 640 × 480 Pixels
Projection Brightness 5–10 Lumen
Best Projection Distance 23 ±3 cm
Battery Working Time 4.5 Hours
Battery Charging Time 3 Hours
Handle Ability Yes
Angle Flexibility All Angle
Appearance Pink

Benefits

  • Helps professionals locate vein patterns more conveniently.
  • Provides a portable design for different healthcare environments.
  • Rechargeable battery supports flexible usage.
  • High-resolution display helps provide clearer image output.
  • Adjustable positioning improves handling convenience.
  • Suitable for professional clinical environments.

Applications

Hospitals
Suitable for professional healthcare settings.
Clinics
Supports vein visualization requirements.
Laboratories
Useful where vein visibility support is required.
Healthcare Centres
Suitable for trained medical professionals.

How to Use

  1. Charge the device before use.
  2. Switch on the device and select the required display mode.
  3. Adjust the angle and position according to the working area.
  4. Place the device at the recommended projection distance.
  5. Check the projected vein image before performing any procedure.
  6. Follow standard clinical protocols during patient care.

Important Safety Note

This device is intended for use by trained healthcare professionals. It supports vein visualization but does not replace professional assessment or clinical judgement. Always follow standard healthcare procedures while performing any medical task.

Need a Vein Finder Machine for Your Facility?

Contact MeddeyGo for product details, availability and order support.

Call 8586012345

Frequently Asked Questions

1. What is a vein finder machine used for?

A vein finder machine helps healthcare professionals visualize vein patterns using near infrared technology.

2. What technology does this device use?

The device uses near infrared light technology with a peak wavelength of 940 ±15 nm.

3. Does this device have a rechargeable battery?

Yes. It provides approximately 4.5 hours working time with around 3 hours charging time.

4. What is the image resolution?

The device provides 640 × 480 pixel image resolution.

5. Can the device angle be adjusted?

Yes. The device supports all-angle flexibility for convenient positioning.

6. Who should use this device?

Trained healthcare professionals should use this device according to their clinical procedures and workplace guidelines.
